Shop HUBBELL WIRING DEVICE-KELLEMS

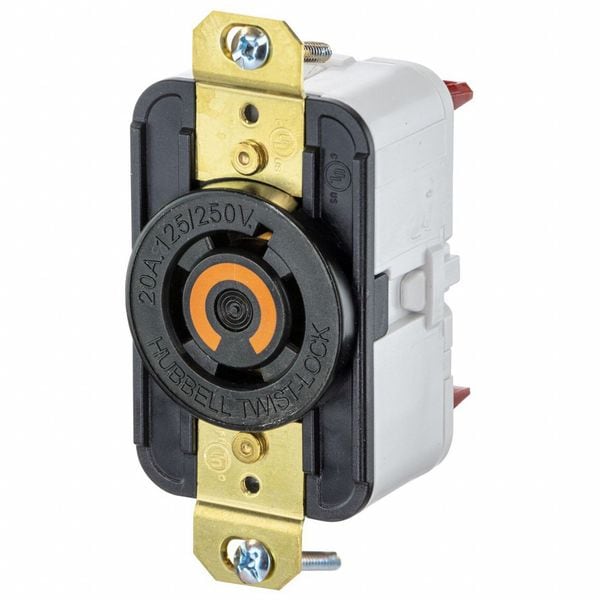

Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Black

  • Mfr # HBL2410ST

  • Zoro # G806171345

product price:
$
47.18
/ea

Key Features

NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2410ST
Zoro #
G806171345
UPC #
783585788593
Country of Origin
China

Dimensions

Face Plate Width
1.7 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.28 in
Overall Depth
1.468 in
Face Diameter
1.56 in
Maximum Wire Size
8 AWG
Face Plate Height
2.77 in
Wire Size
14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded)
Length
3.28 in
Width
1.7 in
Dimensions
3.28 in x 1.7 in x 1.468 in
Height
1.468 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Spring Clamp Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
CSA C22.2, UL 498
Resistance Properties
Impact Resistant
IP Rating
IP20
Number of Gangs
1
Includes
Mounting Strap
Connection Orientation
Straight
Shrouded
No
AFCI
No
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
NEMA Enclosure Rating
1
Housing Material
Nylon
Includes Mounting Hardware
Yes
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
V-2

Description

• Faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• High-impact, abuse-resistant nylon face
• Face color coding by voltage facilitates locating and mating of proper devices
