Shop HUBBELL WIRING DEVICE-KELLEMS

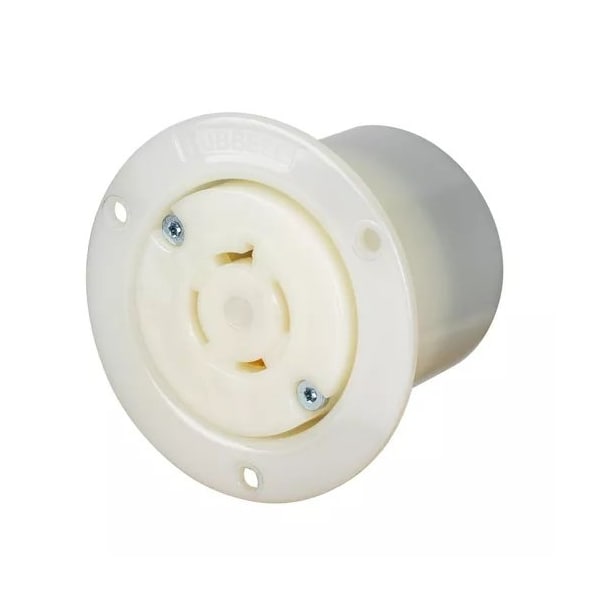

Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Spring Clamp Terminals, White

  • Mfr # HBL2416ST
  • Zoro # G306171333
product price:
$
52.92
/ea

Key Features

NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2416ST
Zoro #
G306171333
UPC #
783585719221
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.28 in
Face Plate Width
1.7 in
Minimum Wire Size
16 AWG
Flange Diameter
2.23 in
Face Diameter
3.08 in
Face Plate Height
2.77 in
Overall Depth
2.27 in
Maximum Wire Size
8 AWG
Fits Chest Size
Accepts Slotted, Phillips, and Robertson Head Drivers

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Spring Clamp Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Screw Mount
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
CSA C22.2, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
IP Rating
IP20
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Includes
Mounting Hardware
For Environment
Dry
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
Shrouded
Yes
Housing Material
Nylon
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Number of Gangs
1
Connection Orientation
Straight
Horsepower Rating
2 hp
Market
Industrial
NEMA Enclosure Rating
1
AFCI
No
Contact Material
Brass
Includes Mounting Hardware
Yes
UL 94 Flammability Rating
HB

Description

EdgeConnectTM Screwless Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Any qualified installer regardless of level of training can guarantee a high quality result.
• Faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• Funnel shaped wire entry for ease of termination.
• Backwired termination for ease of installation
