Shop HUBBELL WIRING DEVICE-KELLEMS

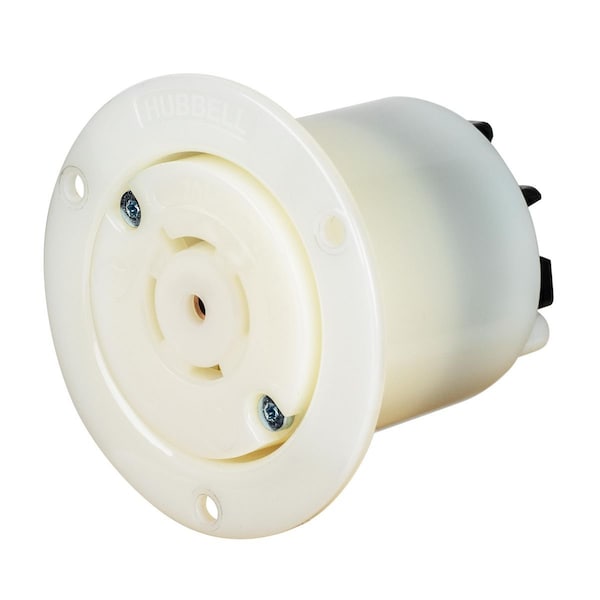

Locking Receptacle, L21-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, White

  • Mfr # HBL2516ST

  • Zoro # G106171342

product price:
$
108.54
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L21-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL2516ST
Zoro #
G106171342
UPC #
783585719177
Country of Origin
China
Item
Locking Receptacle
NEMA Receptacle Configuration
L21-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Spring Clamp Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA C22.2, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
IP Rating
IP20
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Contact Material
Brass
Market
Industrial
NEMA Enclosure Rating
1
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
2 hp
AFCI
No
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Housing Material
Nylon
Number of Gangs
1
Includes Mounting Hardware
Yes
For Location
Indoor
Shrouded
No
For Environment
Dry
Includes
Mounting Hardware
UL 94 Flammability Rating
V-2

Description

EdgeConnectTM Screwless Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Any qualified installer regardless of level of training can guarantee a high quality result.
• Faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• Funnel shaped wire entry for ease of termination.
• Backwired termination for ease of installation
