Shop HUBBELL WIRING DEVICE-KELLEMS

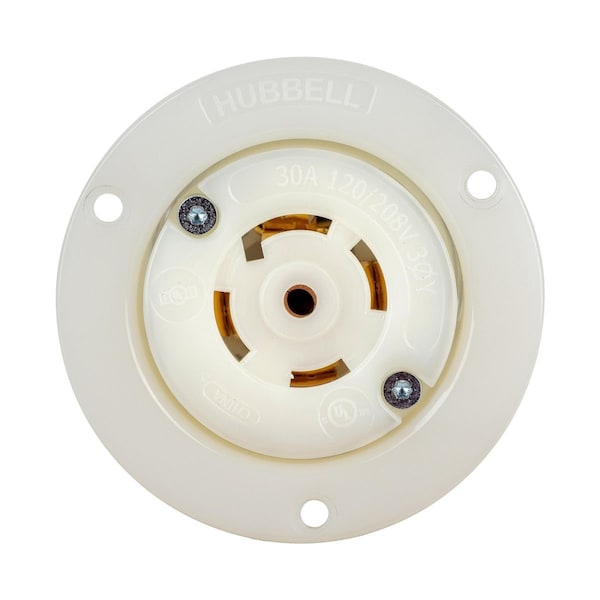

Locking Receptacle, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, White

  • Mfr # HBL2816ST

  • Zoro # G406171332

product price:  $114.68
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L21-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2816ST
Zoro #
G406171332
UPC #
783585719153
Country of Origin
China

Dimensions

Flange Diameter
2.23 in
Overall Depth
2.46 in
Face Plate Height
2.77 in
Face Plate Width
1.7 in
Maximum Wire Size
8 AWG
Face Diameter
3.06 in
Minimum Wire Size
16 AWG
Mount Hole Center-to-Center Height
3.28 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L21-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Spring Clamp Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA C22.2, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
IP Rating
IP20
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Wiring Style
Standard
Horsepower Rating
3 hp
Includes Mounting Hardware
Yes
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Shrouded
No
Housing Material
Nylon
Includes
Mounting Hardware
For Location
Indoor
AFCI
No
Maximum Operating Temperature
167 Degrees F
Market
Industrial
For Environment
Dry
Number of Gangs
1
NEMA Enclosure Rating
1
Polarized
Yes

Description

EdgeConnectTM Screwless Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Any qualified installer regardless of level of training can guarantee a high quality result.
• Faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• Funnel shaped wire entry for ease of termination.
• Backwired termination for ease of installation
