  11. Locking Receptacle, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Surface Mount, Screw Terminals

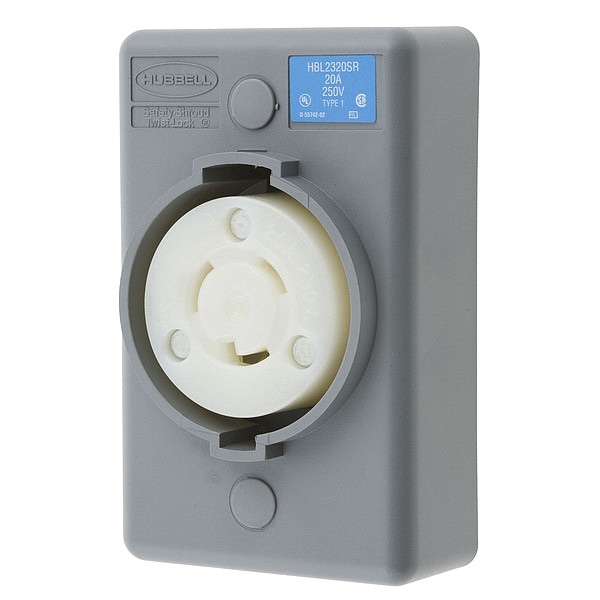

Hubbell Wiring Device-Kellems Locking Receptacle, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Surface Mount, Screw Terminals HBL2320SR - main

Locking Receptacle, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Surface Mount, Screw Terminals

  • Mfr # HBL2320SR

  • Zoro # G3064835

product price: $37.79
/ea

Key Features

NEMA Receptacle Configuration
L6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2320SR
Zoro #
G3064835
UPC #
783585234106
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#16 AWG - #8 AWG solid or stranded copper wire only.

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Gray
Mount Type
Surface
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Flange Type
Non-Flanged
Grade
Industrial
Special Features
Corrosion resistant
Wiring Style
Standard
Mounting Type
Surface Mount
Material
Impact Modified PBT
For Location
Indoor
AFCI
No
Contact Material
Brass
Housing Material
Valox
Horsepower Rating
2 hp
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Market
Industrial
Connection Orientation
Straight
For Environment
Dry
Number of Gangs
1
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Terminal Designations
Terminals identified in accordance with UL 498
Flange Material
Gray Valox 357U
Lock Type
Twist-lock
Spring Material
.031" Brass
Amps
20

Description

• Accepts Hubbell shrouded and standard NEMA locking plugs
• Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
• Catalog number and color coded voltage rating are visible even when in use
• Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
