  11. Locking Receptacle, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

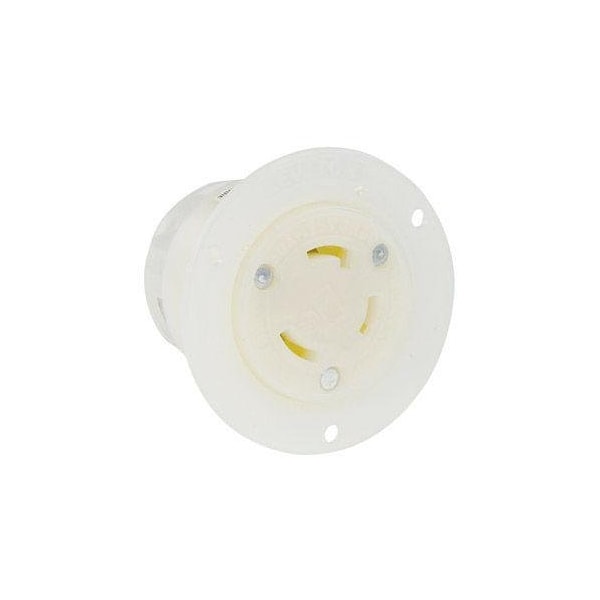

Leviton Locking Receptacle, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals 4785-C - main

Locking Receptacle, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # 4785-C

  • Zoro # G215864760

product price: $32.19
/ea

Key Features

NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4785-C
Zoro #
G215864760
UPC #
078477795842
Country of Origin
Mexico

Dimensions

Minimum Wire Size
18 AWG
Flange Diameter
2.5 in
Maximum Wire Size
10 AWG
Face Diameter
2.5 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
Not Rated
Standards
ANSI, CSA C22 2 No 42, UL 498, UL Fed Spec WC 596
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Flange Type
Flanged
Wiring Style
Standard
Grade
Federal Specification
For Environment
Dry
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Flange Shape
Round
Connection Orientation
Straight
Horsepower Rating
2 hp
Maximum Operating Temperature
140 Degrees F
Housing Material
Nylon
Contact Material
Brass
Includes Mounting Hardware
Yes
AFCI
No
Midget Locking
No
Number of Outlets
1

Description

Fifteen Amp
