Shop HUBBELL WIRING DEVICE-KELLEMS

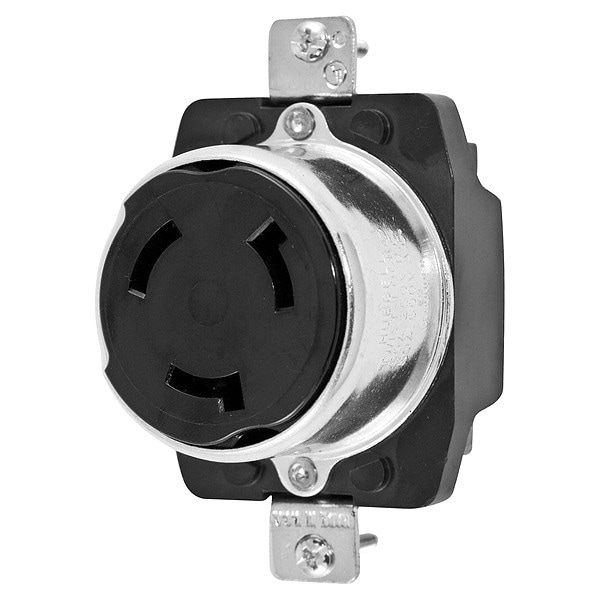

Locking Receptacle, Non-NEMA, 50 A, 250/600V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL3769

  • Zoro # G0258781

product price:  $169.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250/600V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL3769
Zoro #
G0258781
UPC #
783585236469
Country of Origin
United States

Dimensions

Minimum Wire Size
8 AWG
Maximum Wire Size
4 AWG
Wire Size
#10 AWG min #6 AWG max

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250/600V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
CSA Certified C22.2 No. 42, UL 498
Resistance Properties
Heat Resistant, Impact Resistant
IP Rating
IP20
Material
Impact Modified PBT
Wiring Style
Standard
Mounting Type
Flush Mount
Grade
Industrial
Special Features
With Cover
For Location
Indoor
Shrouded
No
Maximum Operating Temperature
167 Degrees F
Number of Gangs
1
Market
Industrial
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
For Environment
Dry
Housing Material
Phenolic
AFCI
No
NEMA Enclosure Rating
4x, 12
Contact Material
Brass
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Lock Type
Twist-lock
Spring Material
.100"/.040" Brass
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Amps
50

Description

• Thermoset construction offers high heat resistance
• Armored housing provides superior impact resistance
• One piece contacts provide low operating temperatures
