  11. Manual Motor Switch, 40 A, 2 P, 1 Phase, Toggle, Circuit-Lock Series, No Enclosure

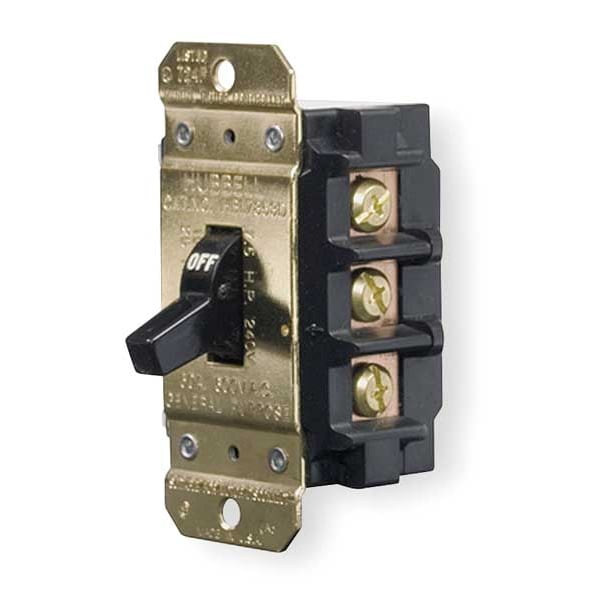

Hubbell Wiring Device-Kellems Manual Motor Switch, 40 A, 2 P, 1 Phase, Toggle, Circuit-Lock Series, No Enclosure HBL7842D - main

Manual Motor Switch, 40 A, 2 P, 1 Phase, Toggle, Circuit-Lock Series, No Enclosure

  • Mfr # HBL7842D

  • Zoro # G2291922

product price: $76.99
/ea
Free Shipping & Returns

Key Features

Operator
Toggle
Type
Side Wire
Depth
2.4 in
Height
3.7 in
Width
2.2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7842D
Zoro #
G2291922
UPC #
783585202846
Country of Origin
United States

Dimensions

Depth
2.4 in
Height
3.7 in
Width
2.2 in
Display Size
Standard Sized Product
Overall Depth
3.98 in
Overall Width
2.42 in
Mounting Hole Diameter
0.2 in
Overall Height
2.42 in
Mounting Hole Distance - Height
3.28 in

Details

Operator
Toggle
Type
Side Wire
Item
Manual Motor Switch
Number of Poles
2
HP @ 1 Phase - 230V
5 hp
Standards
UL, CSA
Phase Loss Sensitivity
No
Description/Special Features
Back and Side Wired
Number of Gangs
1
Circuit-Lock Item
AC Manual Motor Controllers
Circuit-Lock Enclosure
None
Circuit-Lock Toggle Style
Standard
Circuit-Lock Wiring Style
Side Wired
Dielectric Strength
2,200V AC minimum for 1 minute
Construction
Fabricated
Load Capacity
Inductive
Phase
1
Performance
Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94HB/VO Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact Mechanical - Mechanical Life - Min. 10,000 minimum cycles Mechanical - Switch Rating - 25 inch pounds Mechanical - Terminal Accommodations - #10 AWG Max Mechanical - Terminal Torque - 20 inch pounds Mechanical - Wire Type - Solid and stranded copper wire only
Connectivity
Side Wired
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
24000
Series
Circuit-Lock
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Operating Cycles
10,000 Cycles Minimum
Terminal Connection Type
Screw
NEMA Enclosure Rating
No Enclosure
Horsepower @ Single Phase - 120V AC
2 hp
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Three Phase - 480V AC
Not Rated
Horsepower @ Single Phase - 240V AC
5 hp
Includes Pilot Light
No
Maximum Voltage Rating
600V AC
Horsepower @ Three Phase - 600V AC
Not Rated
Horsepower @ Three Phase - 208V AC
Not Rated
Contact Material
Stainless Steel
Maximum Operating Temperature
167 Degrees F
Horsepower @ Three Phase - 240V AC
Not Rated
Mounting Style
Surface
Current AC
40 A
Starter Style
NEMA

Description

Manual Motor Switch, Number of Gangs 1, Current AC 40 A, Hazardous Location Specification Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 5 hp, Horsepower @ Three Phase - 208V AC Not Rated, Horsepower @ Three Phase - 240V AC Not Rated, Horsepower @ Three Phase - 480V AC Not Rated, Horsepower @ Three Phase - 600V AC Not Rated, Includes Pilot Light No, Number of Poles 2, Number of Required Thermals Not Applicable, Operator Toggle Switch
