- MFR #
- VBF3
- Zoro #
- G0861817
- UPC #
- 785901702245
- Country of Origin
- Korea, Republic of

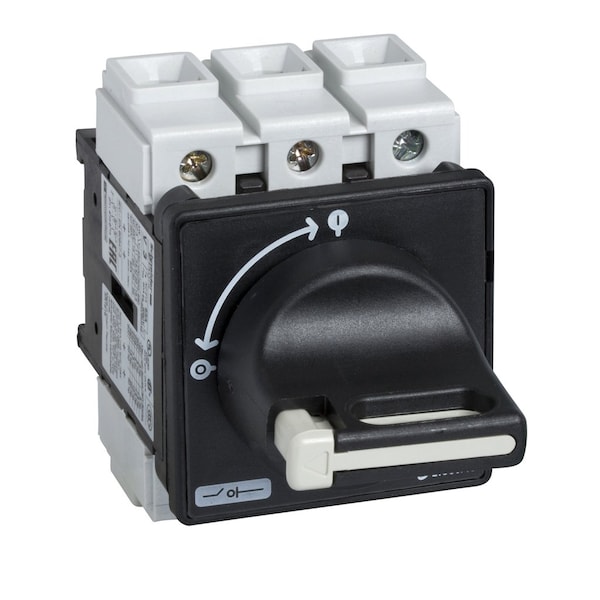

- Item
- Manual Motor Switch
- Current AC
- 41.5 A
- Number of Poles
- 3
- Operator
- Rotary
- Starter Style
- IEC
- Terminal Connection Type
- Screw Clamp
- Maximum Voltage Rating
- 690V AC
- Series
- TeSys VARIO
- Standards
- IEC 60947-3
- Making Capacity
- 630 A 400 V AC-21A || 630 A 400 V AC-22A || 630 A 400 V AC-23A
- Performance Level
- high performance
- Handle Colour
- black
- Electrical Durability
- 30000 cycles AC-21 || 30000 cycles DC-1 to 5
- Marking
- 0 - 1
- Suitability For Isolation
- yes
- Fixing Mode
- by 4 screws handle
- Rated Operational Power In W
- 11 kW 230 to 240 V AC-3) || 22 kW 500 V AC-3) || 22 kW 690 V AC-23A) || 30 kW 500 V AC-23A) || 18.5 kW 400 to 415 V AC-3) || 18.5 kW 690 V AC-3) || 15 kW 230 to 240 V AC-23A) || 22 kW 400 to 415 V AC-23A)
- Device Short Name
- VBF
- Mounting Support
- handle door || switch door
- [Icm] Rated Short-Circuit Making Capacity
- 2.1 kA 400 V at Ipeak
- Tightening Torque
- power circuit 4-4 N.m screw clamp terminals
- Mechanical Robustness
- vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
- [Icw] Rated Short-Time Withstand Current
- 756 A 400 V 1 s
- [Ie] Rated Operational Current
- 41.5 A AC-23 Ue: 400 V
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Mechanical Durability
- 30000 cycles
- Device Application
- preventive maintenance
- Compatibility Code
- main switch disconnector
- Network Type
- DC || AC
- Ambient Air Temperature For Operation
- -20-50°C
- Breaking Capacity
- 500 A 400 V AC-21A) || 500 A 400 V AC-22A) || 500 A 400 V AC-23A)
- Protective Treatment
- TC
- Intermittent Duty Class
- 30
- [Ithe] Conventional Enclosed Thermal Current
- 50 A
- Fire Resistance
- 960°C IEC 60695-2-1
- Device Composition
- switch || handle
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP65
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Contacts Type And Composition
- 3 NO
- Handle Front Plate Colour
- black
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 63 A aM || 10 kA 400 V 63 A gG
- [Ith] Conventional Free Air Thermal Current
- 63 A
- Rotary Handle Mounting Style
- direct
