  11. Midget Flanged Locking Inlet, 15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black

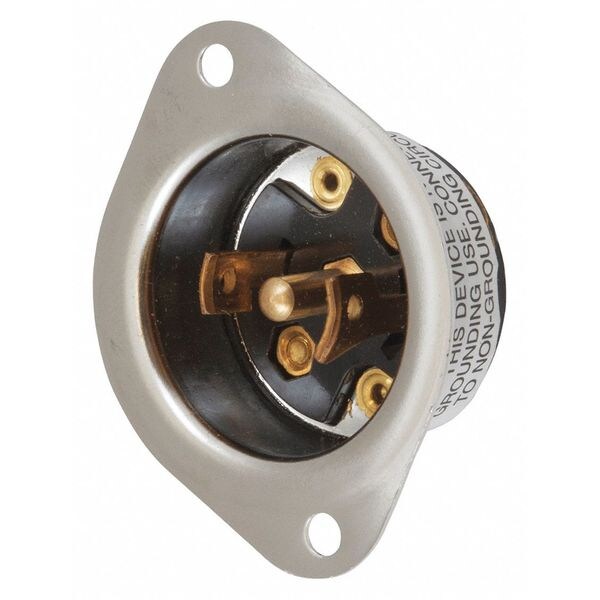

Hubbell Wiring Device-Kellems Midget Flanged Locking Inlet, 15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black HBL7486 - main

Midget Flanged Locking Inlet, 15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black

  • Mfr # HBL7486

  • Zoro # G0574850

product price: $29.19
/ea

Key Features

Current Rating
15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7486
Zoro #
G0574850
UPC #
783585237459
Country of Origin
United States

Dimensions

Flange Diameter
1.13 in
Face Plate Height
2.06 in
Overall Depth
0.98 in
Minimum Wire Size
18 AWG
Maximum Wire Size
14 AWG
Wire Size
15A #14 AWG
Height
0.98 in
Length
2.06 in
Width
1.63 in
Dimensions
2.06 in x 1.63 in x 0.98 in

Details

Item
Midget Locking Plug
Current Rating
15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black
Cover Type
No Cover
IP Rating
IP20
Standards
CSA C22.2 No. 42, UL 498
Resistance Properties
Heat Resistant, Moisture Resistant
Flange Type
Flanged
Wiring Style
Standard
Special Features
Molded In or Stamped On
Material
Nickel-plated Brass Round head screws
Grade
General Use
Blade Material
Brass
NEMA Plug Configuration
ML3-15P
Number of Blades
3
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
For Environment
Dry
Maximum Operating Temperature
167 Degrees F
Midget Locking
Yes
Connection Orientation
Straight
Flange Material
Stainless Steel
For Location
Indoor
Housing Material
Stainless Steel
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Terminal Designations
Terminals identified in accordance with UL 498
Lock Type
Twist-lock
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body
Amperage Rating
15 A
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #14 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Cord Range
0.220"-0.385"(5.6-9.8)
Application
Heavy Duty Industrial
Dielectric Strength
Withstands 2,000V minimum
NEMA Configuration
ML3-15
NEMA Receptacle Configuration
ML-3P

Description

Midget Locking Flgd Inlet Nema Ml-3P, Current Rating 15 A, Flange Material Stainless Steel, Housing Color Black, IP Rating IP20, NEMA Plug Configuration ML3-15P, Number of Blades 3, Number of Poles 3, Phase Single, Resistance Properties Heat Resistant, Moisture Resistant, Voltage Rating 125/250V AC, Flange Diameter 1.13 in, Flange Type Flanged, Grounding Non-Grounded, Housing Material Stainless Steel, Maximum Wire Size 14 AWG, Midget Locking Yes, Minimum Wire Size 18 AWG
