  11. Midget Locking Connector, ML2-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

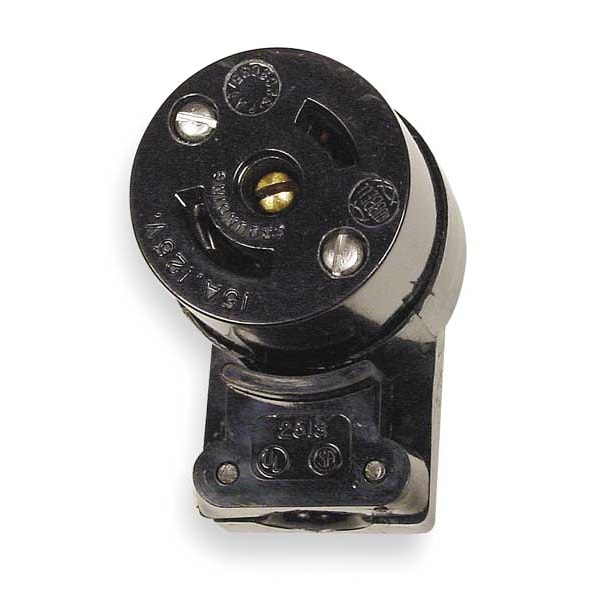

Hubbell Wiring Device-Kellems Midget Locking Connector, ML2-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL7571 - main

Midget Locking Connector, ML2-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL7571

  • Zoro # G1530986

product price: $32.45
/ea

Key Features

NEMA Receptacle Configuration
ML2-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7571
Zoro #
G1530986
UPC #
783585237695
Country of Origin
United States

Dimensions

Cord Size
0.335 in to 0.421 in
For Maximum Cable Diameter
0.385 in
For Minimum Cable Diameter
0.22 in
Maximum Wire Size
12 AWG
Overall Length
1.69 in
Outside Diameter
1.172 in
Minimum Wire Size
14 AWG
Length
1.69 in
Wire Size
#18 AWG to #14 AWG
Height
1.28 in
Dimensions
1.69 in x 1.17 in x 1.28 in
Width
1.17 in

Details

Item
Midget Locking Connector
NEMA Receptacle Configuration
ML2-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Shrouded
No
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap
Standards
CSA Certified C22.2 No. 42, UL 498
Resistance Properties
Heat Resistant
Body Material
Nylon
Material
.032" Bronze
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
IP Rating
IP20
For Location
Indoor
Contact Material
Brass
Market
Industrial
For Environment
Dry
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
75 Degrees C
UL 94 Flammability Rating
HB
Midget Locking
Yes
Dielectric Strength
2,000V minimum
Flame Resistant
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Weight
0.1
Material - Mounting Hardware
Cord Mounted
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Cord Range
0.220"-0.385"(5.6-9.8)
Conductor Range
#14 AWG to #12 AWG
Insulation
Insulated Body
Amperage Rating
15 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Heavy Duty Industrial

Description

Midget Locking Angle Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration ML2-15R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Heat Resistant, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Brass, For Maximum Cable Diameter 0.385 in, For Minimum Cable Diameter 0.22 in
