  11. Midget Locking Connector, ML2-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

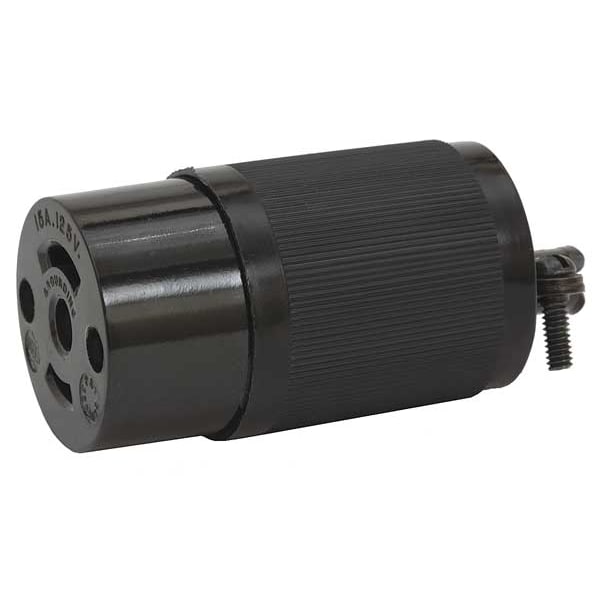

Hubbell Wiring Device-Kellems Midget Locking Connector, ML2-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL7593 - main

Midget Locking Connector, ML2-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL7593

  • Zoro # G3071582

product price: $27.41
/ea

Key Features

NEMA Receptacle Configuration
ML2-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7593
Zoro #
G3071582
UPC #
783585237749
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.421 in
For Minimum Cable Diameter
0.281 in
Cord Size
0.281 in to 0.421 in
Maximum Wire Size
12 AWG
Overall Length
1.17 in
Outside Diameter
1.172 in
Minimum Wire Size
14 AWG
Height
2.42 in
Wire Size
#18 AWG to #14 AWG
Width
1.17 in
Length
1.17 in
Dimensions
1.17 in x 1.17 in x 2.42 in

Details

Item
Midget Locking Connector
NEMA Receptacle Configuration
ML2-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, UL 498
Resistance Properties
Impact Resistant
Body Material
Nylon
Material
.032" Bronze
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Contact Material
Brass
Midget Locking
Yes
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
HB
Horsepower Rating
2 hp
Maximum Operating Temperature
75 Degrees C
For Location
Indoor
Market
Industrial
Housing Material
Nylon
For Environment
Dry
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Dielectric Strength
2,000V minimum
Weight
0.1
Material - Mounting Hardware
Cord Mounted
Amperage Rating
15 A
Application
Heavy Duty Industrial
Conductor Range
#14 AWG to #12 AWG
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Cord Range
0.281"-0.421"(7.1-10.7)
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body

Description

Midget Locking Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration ML2-15R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Impact Resistant, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Spring Clamp Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Brass, For Maximum Cable Diameter 0.421 in, For Minimum Cable Diameter 0.281 in
