Shop HUBBELL WIRING DEVICE-KELLEMS

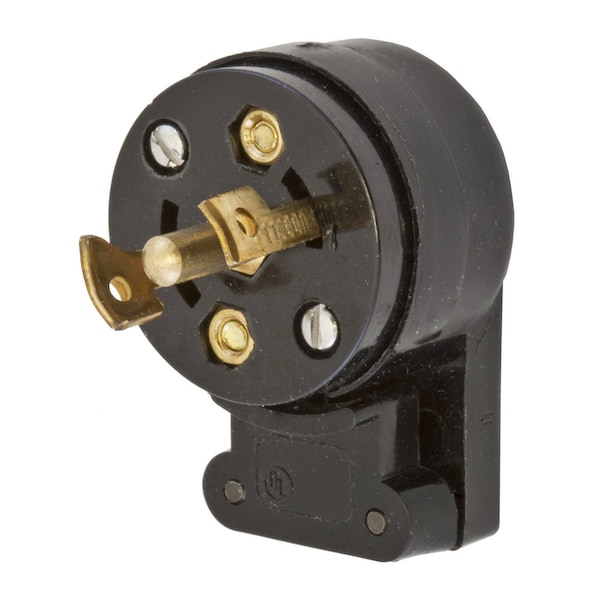

Midget Locking Plug, ML-3P, 15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black

  • Mfr # HBL7432

  • Zoro # G800702460

product price:
$
32.95
/ea

Key Features

NEMA Plug Configuration
ML-3P
Current Rating
15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL7432
Zoro #
G800702460
UPC #
783585237190
Country of Origin
United States

Dimensions

Cord Size
.335"-.421"
Length
1.68 in
Wire Size
#18 AWG to #14 AWG
Height
1.32 in
Width
1.17 in
Dimensions
1.68 in x 1.17 in x 1.32 in
For Maximum Cable Diameter
0.421 in
For Minimum Cable Diameter
0.335 in

Details

Item
Midget Locking Plug
NEMA Plug Configuration
ML-3P
Current Rating
15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black
Standards
Certified to CSA C22.2 No.42, Listed to UL 498
Resistance Properties
Moisture Resistance
Application
Industrial/Commercial
Material
Nylon
IP Rating
IP20
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Blade Material
Brass
Cord Range
0.335"-0.421"(8.5-10.7)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Cord Type
All Listed Portables

Description

Hubbell Wiring Device Kellems, Locking Devices, Midget TwistLock,Industrial, Male Plug, 15A 125/250V, 3-Pole 3-Wire Non Grounding, ML-3P,Screw Terminal, Black, Angled
