Shop LEGRAND

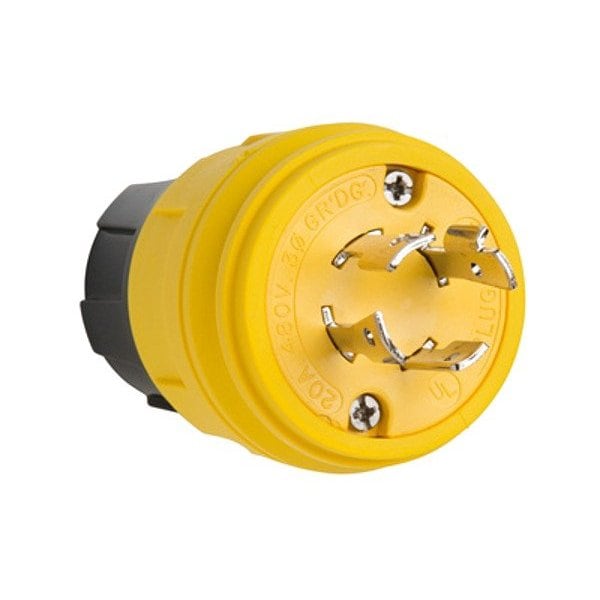

LockingPlug, 20A, Yellow, Thermoplastic

  • Mfr # 26W76

  • Zoro # G822785090

product price:
$
76.25
/ea

Key Features

For Maximum Cable Diameter
0.625 in
Voltage Rating
480V AC
For Location
Indoor, Outdoor
Grounding
Grounded
Features
Color-Coded Sealing Bushings Provided for Large Range of Cord Diameters, Devices Resist High-Pressure Hosedown of 1,500 PSI, Large Ribs on Body for a Superior Grip When Mating, Multi-Point Sealing System Provides Environmental Protection of NEMA 4, 4X, 6, 6P, and IP67 Rated, Nickel-Plated Blades and Contacts for Long-Lasting, Superior Corrosion Resistance, Thermoplastic Elastomer (TPV) Construction Stands upto Impacts, Oils, Chemicals, Heat, and Weather
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
26W76
Zoro #
G822785090
UPC #
785007033656
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.625 in
Wire Rope Length
2.62 in
For Minimum Cable Diameter
0.3 in
Overall Length
2.62 in

Details

Voltage Rating
480V AC
Item
Locking Plug
For Location
Indoor, Outdoor
Grounding
Grounded
Features
Color-Coded Sealing Bushings Provided for Large Range of Cord Diameters, Devices Resist High-Pressure Hosedown of 1,500 PSI, Large Ribs on Body for a Superior Grip When Mating, Multi-Point Sealing System Provides Environmental Protection of NEMA 4, 4X, 6, 6P, and IP67 Rated, Nickel-Plated Blades and Contacts for Long-Lasting, Superior Corrosion Resistance, Thermoplastic Elastomer (TPV) Construction Stands upto Impacts, Oils, Chemicals, Heat, and Weather
Phase
Three
Housing Material
Thermoplastic
Current Rating
20 A
Connection Orientation
Straight
Number of Poles
3
Wire Connection Type
Screw Terminals
Housing Color
Yellow
IP Rating
IP67
Power and Ground Indicating Light
No
Midget Locking
No
Number of Blades
4
Shrouded
No
Series
TURNLOK(R)
NEMA Enclosure Rating
4, 4X, 6, 6P
Resistance Properties
Corrosion Resistant
Market
Industrial
NEMA Plug Configuration
L16-20P

Description

Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Yellow, Housing Material Thermoplastic, NEMA Plug Configuration L16-20P, Number of Blades 4, Number of Poles 3, Phase Three, Resistance Properties Corrosion Resistant, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.625 in, For Minimum Cable Diameter 0.3 in, Grounding Grounded, Horsepower Rating Not Applicable, IP Rating IP67, Market Industrial
