Shop HUBBELL WIRING DEVICE-KELLEMS

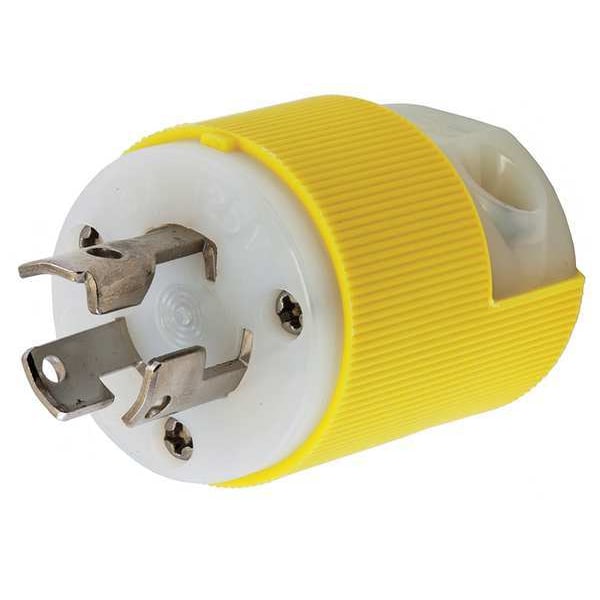

Locking Plug, L5-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, White, Yellow

  • Mfr # HBL47CM20C
  • Zoro # G5170733
product price:
$
21.85
/ea

Key Features

NEMA Plug Configuration
L5-15P
Current Rating
15 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL47CM20C
Zoro #
G5170733
UPC #
783585160504
Country of Origin
United States

Dimensions

Cord Size
0.230 in to 0.720 in
For Maximum Cable Diameter
0.72 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Body Length
1.53 in
For Minimum Cable Diameter
0.23 in
Outside Diameter
1.527 in
Wire Size
#18 AWG to #10 AWG
Length
1.53 in
Height
1.97 in
Dimensions
1.53 in x 1.53 in x 1.97 in
Width
1.53 in
Wire Rope Length
1.53 in
Overall Length
1.53 in

Details

Item
Locking Plug
NEMA Plug Configuration
L5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
White, Yellow
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant
Material
Nylon
IP Rating
IP20
Special Features
Corrosion resistant
Grade
Industrial
Application
Extra Heavy Duty Industrial
Blade Material
Nickel-Plated Brass
Horsepower Rating
1/2 hp
Maximum Operating Temperature
75 Degrees C
Market
Industrial
For Location
Indoor
For Environment
Dry
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees C
Polarized
Yes
Flammability
HB or better per UL94 or CSA 22.2 No. 0.6
Cord Range
0.230"-0.720"(5.8-18.3)
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Material - Mounting Hardware
Cord Mounted
Cord Type
All Listed Portables
Amperage Rating
15 A
Antimicrobial
No
Amps
15
NEMA Configuration
L5-15
UL 94 Flammability Rating
HB

Description

The HUBBELL 15A Locking Plug L5-15P is a locking electrical plug suitable for industrial applications. It features a two-pole, three-wire configuration and is rated for 125V AC and 15 amps. The plug includes an individually molded face for each blade configuration, a roomy wiring chamber to accommodate various wire sizes, and a ribbed nylon housing; impact and chemical resistant.


Key Features of the HUBBELL 15A Locking Plug L5-15P:

  • Amperage/Voltage Rating: Rated for 15 A at 125V AC

  • NEMA Configuration: L5-15P (2 pole, 3 wire)

  • Housing Material: Ribbed nylon housing; impact and chemical resistant

  • Cable/Cord Range: Accepts cable diameters from 0.230 in to 0.720 in (#18 AWG to #10 AWG stranded copper wire)

  • Corrosion Resistant: Constructed with corrosion-resistant materials

  • Dielectric Strength: Withstands minimum of 2,000V

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Wire Connection Type: Screw terminals with standard wiring style

  • Certifications/Standards: UL 498 listed; CSA C22.2 No.42 certified; Federal Specification W-C-596 compliant
