  11. Midget Locking Plug, ML3-15P, 15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black

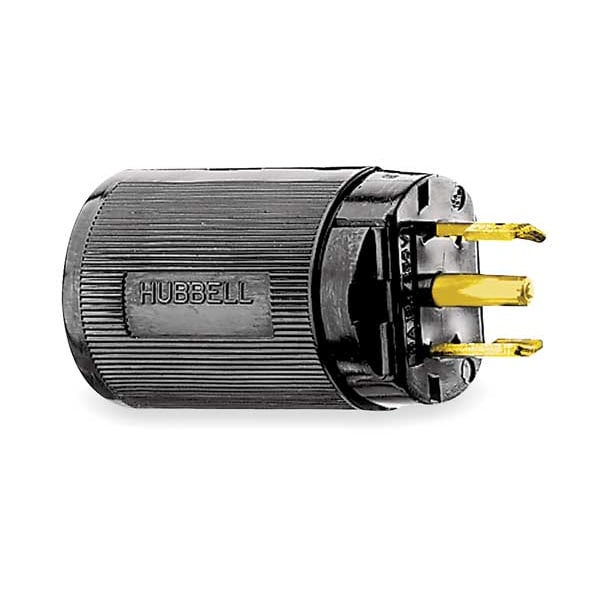

Hubbell Wiring Device-Kellems Midget Locking Plug, ML3-15P, 15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black HBL7485V - main

Midget Locking Plug, ML3-15P, 15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black

  • Mfr # HBL7485V

  • Zoro # G1802814

product price: $21.19
/ea

Key Features

NEMA Plug Configuration
ML3-15P
Current Rating
15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7485V
Zoro #
G1802814
UPC #
783585237435
Country of Origin
China

Dimensions

For Maximum Cable Diameter
0.43 in
For Minimum Cable Diameter
0.30 in
Cord Size
0.300 in to 0.430 in
Body Length
1.61 in
Minimum Wire Size
18 AWG
Outside Diameter
1.188 in
Maximum Wire Size
14 AWG
Wire Size
#18 AWG to #14 AWG
Length
1.61 in
Height
1.18 in
Dimensions
1.61 in x 1.18 in x 1.18 in
Width
1.18 in

Details

Item
Midget Locking Plug
NEMA Plug Configuration
ML3-15P
Current Rating
15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black
IP Rating
IP20
Standards
Federal Specification W-C-596
Resistance Properties
Chemical Resistant, Impact Resistant
Body Material
Nylon
Application
Industrial/Commercial
Material
Nylon
Blade Material
Brass
For Location
Indoor
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
Market
Commercial, Industrial
Polarized
Yes
For Environment
Dry
Midget Locking
Yes
Minimum Operating Temperature
-40 Degrees C
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Dielectric Strength
Withstands 2,000V minimum
Cord Type
All Listed Portables
Amperage Rating
15 A
Material - Mounting Hardware
Cord Mounted
Cord Range
0.300"-0.430"(7.6-10.9)
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
NEMA Configuration
ML3-15
Amps
15 A

Description

Midget Locking Plug, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, Housing Material Nylon, NEMA Plug Configuration ML3-15P, Number of Blades 3, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 125/250V AC, Wiring Style Hinged, For Maximum Cable Diameter 0.43 in, For Minimum Cable Diameter 0.3 in, Grounding Non-Grounded, IP Rating IP20, Market Commercial, Industrial, Midget Locking Yes
