Shop LEVITON

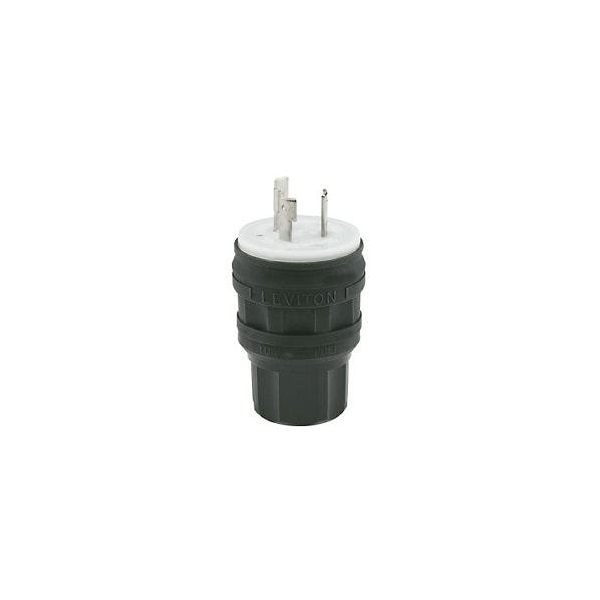

Watertight Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # 28W47-B

  • Zoro # G115864716

product price:
$
64.29
/ea

Key Features

Current Rating
30 A
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
28W47-B
Zoro #
G115864716
UPC #
078477014677
Country of Origin
Mexico
Item
Watertight Locking Plug
NEMA Plug Configuration
L5-30P
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498
Resistance Properties
Acid, Alkalies, Lubricant and Solvent Resistant, Water, Watertight
IP Rating
IP66, IP67, IP68, IP69K
Housing Material
EPTR Rubber
Blade Material
Nickel-Plated Brass
Midget Locking
No
Minimum Operating Temperature
-40 Degrees F
For Environment
Washdown
Maximum Operating Temperature
140 Degrees F
Market
Industrial
Series
Perma-Tite
Features
Industry Exclusive Limited Lifetime Warranty
Horsepower Rating
2 hp
Power and Ground Indicating Light
No
Grade
General Use
UL 94 Flammability Rating
V-2

Description

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, Housing Material Santoprene, NEMA Plug Configuration L5-30P, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Watertight, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 2.281 in, For Maximum Cable Diameter 10.125 in, For Minimum Cable Diameter 0.625 in, Grade General Use, Grounding Grounded, Horsepower Rating 2 hp
