  8. Nonfusible, Enclosed Disconnect Switch, Heavy Duty, 600V AC, 3PST, NEMA 12K, 4, 4X

This item is Discontinued.

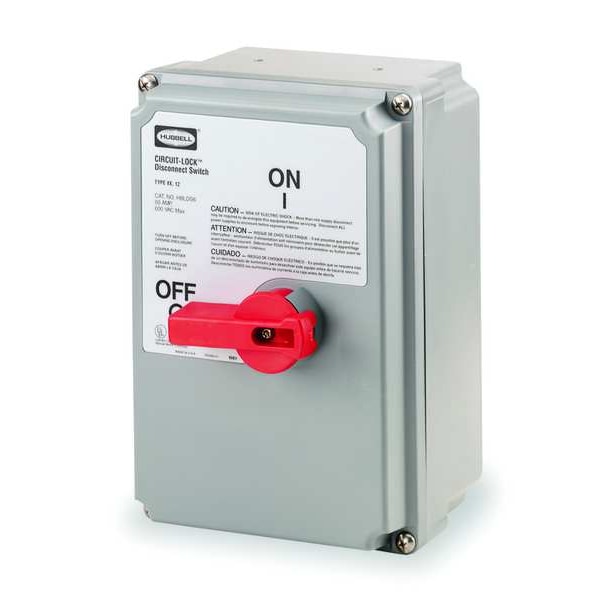

Hubbell Wiring Device-Kellems Nonfusible, Enclosed Disconnect Switch, Heavy Duty, 600V AC, 3PST, NEMA 12K, 4, 4X HBLDS6

Nonfusible, Enclosed Disconnect Switch, Heavy Duty, 600V AC, 3PST, NEMA 12K, 4, 4X (Discontinued)

  • Mfr # HBLDS6
  • Zoro # G3075922
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLDS6
Zoro #
G3075922
UPC #
783585430706
Country of Origin
Poland

Dimensions

Depth
5.9 in
Width
6.9 in
Height
10 in
Standard Conduit Size
1.25 in
Dimensions
11 in x 7.75 in x 5.94 in
Length
11 in

Details

Item
Enclosed Disconnect Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
60 A
Phase
3
Environment
Indoor/Outdoor
Enclosure Type
Enclosed
HP
50 hp @ 600V AC
Voltage
600V AC
Handle Color
Red
Housing Material
Non-Metallic
Standards
UL/CSA
Amps
60 A
Number of Poles
3
Material
Non-Metallic
Fusible / Nonfusible
Nonfusible
IP Rating
66
Duty
Heavy
NEMA Enclosure Type
12K, 4, 4X
Number of Wires
5
Neutral Assembly Included
Yes
Includes
(2) 1-1/4 in Conduit Hubs, Mounting Feet
Series
Non-Fused
Type
Disconnect Switches
Switch Type
Three Pole Unfused
For Environment
Indoor & Outdoor Rated
Resistance Properties
Corrosion-Resistant, Impact-Resistant, UV-Resistant
Horsepower @ 600V AC
50 hp
NEMA Enclosure Rating
4X
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Amperage
60A
Listing and Certifications
UL Listed and CSA Certified
Mounting Method
External fully adjustable feet
Current / Amperage Rating
60 A
Style
Heavy Duty
Application
Labelless
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage Electrical - Dielectric Voltage - Withstands 3000V AC minimum Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V0 Classification Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact Environmental - UV Resistance - All materials are UV stabilized Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - Non-Metallic - External fully adjustable feet Mechanical - Product Identification - Identification and ratings are part of external label Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
Ingress Protection
IP69K
Industry Standard(s)
UL Listed
Horsepower - Maximum
50
Dielectric Strength
Withstands 3000V AC minimum
Amperage Rating
60 A

Description

Enclosed Disconnect Switch, Contact Form 3PST, Current Rating 60 A, Depth 5 7/8 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor/Outdoor, For Fuse Class Not Applicable, Handle Color Red, Height 5 3/4 in, Horsepower @ 600V AC 50 hp, Housing Material Non-Metallic, Includes (2) 1-1/4 in Conduit Hub, Mounting Feet, IP Rating IP69K, NEMA Enclosure Rating 4X, Neutral Assembly Included Yes
