This item is Discontinued.

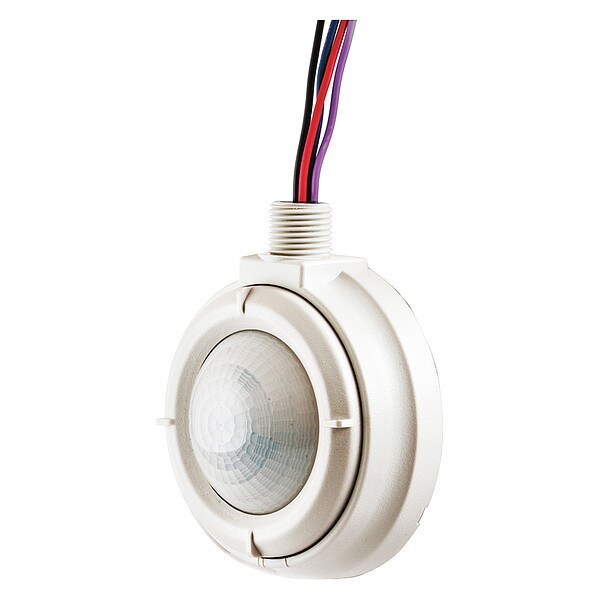

Hubbell Wiring Device-Kellems Occupancy Sensor, 24VDC, White HMHB2LV9

Occupancy Sensor, 24VDC, White (Discontinued)

Mfr # HMHB2LV9
Zoro # G9490126

Get a 10% off coupon

Free 30-day returns Return Policy

Get 30 days to pay with Net 30 Apply Now

Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #

HMHB2LV9

Zoro #

G9490126

UPC #

783585424903

Country of Origin

China

Dimensions

Suggested Mounting Height - Motion Sensor

Up to 45 ft

Overall Height

1.5 in

Overall Diameter

4 in

Minimum Mounting Height

8 ft

Maximum Mounting Height

45 ft

Details

Use With - Motion Sensing and Dimming

High Bay Fixtures

Communication Method - Motion Sensing and Dimming

Hard Wired

Sensing Technology

Passive Infrared (PIR)

Item

Occupancy Sensor

Standards

ASHRAE 90.1, CEC Title 24 Compliant, cULus Listed

For Use With

High Bay Fixtures

Lighting Technology

Fluorescent

Green Environmental Attribute

Product Contributes To Reducing Energy Consumption

Max. Capacity @ 277VAC

1200W (Fluorescent)

Coverage Angle - Motion Sensor

180 Degrees

Color

White

Max. Capacity @ 120VAC

800W (Fluorescent)

Description/Special Features

Control Unit Required, Low Bay Requires Replacement Lens

Compatible With

Fluorescent Fixtures

Includes

Mounting Hardware

Communication Method

Hard Wired

Type

Sensors

Wall Plate

Not Included

Time Delay Adjustment Method

Manual

Manufacturer Warranty

5 yr

Maximum Coverage Area

500 sq ft

Minimum Time Delay

4 min

Load Rating @ 120V AC

800W (Fluorescent)

Coverage Type

Large Motion, Small Motion

Load Rating @ 277V AC

1,200W (Fluorescent)

Minimum Operating Temperature

32 Degrees F

Maximum Time Delay

90 min

Sensor Operation

Occupancy, Photocell

Maximum Operating Temperature

149 Degrees F

Installation Location

Fixture Mount

Style

Non-Dimming

Operating Voltage

24V DC

Time Delay

4 to 90 min

Description

Occupancy Sensor, Sensing Technology Passive Infrared (PIR), Operating Voltage 24V DC, Maximum Coverage Area 500 sq ft, Maximum Mounting Height 45 ft, Load Rating @ 120V AC 800W (Fluorescent), Communication Method Hard Wired, Color White, Includes Mounting Hardware, Sensor Operation Occupancy, Photocell, Lighting Technology Fluorescent, Installation Location Fixture, Standards ASHRAE 90.1, CEC Title 24 Compliant, cULus Listed, Overall Diameter 4 in, Time Delay Adjustment Method Manual
