  6. Occupancy Sensors, Adaptive Technology Passive Infrared High Bay Wall Mount Sensor, 120 Square Feet Coverage, HighBay WithRelayRelay

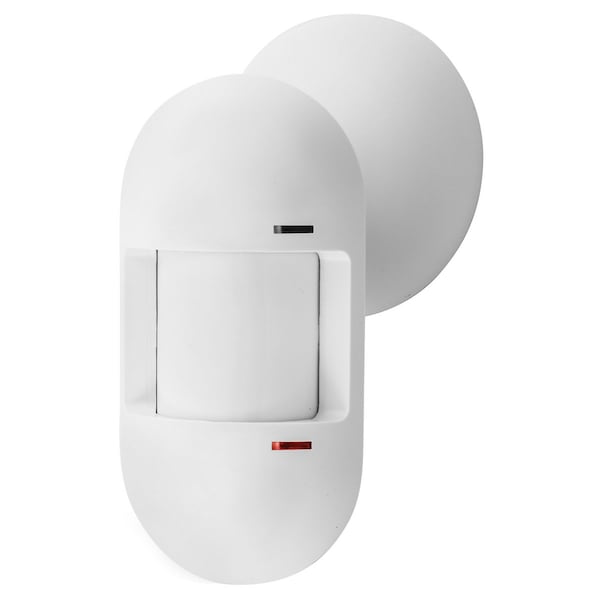

Hubbell Wiring Device-Kellems Occupancy Sensors, Adaptive Technology Passive Infrared High Bay Wall Mount Sensor, 120 Square Feet Coverage, HighBay WithRelayRelay ATP120HBRP - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Occupancy Sensors, Adaptive Technology Passive Infrared High Bay Wall Mount Sensor, 120 Square Feet Coverage, HighBay WithRelayRelay

  • Mfr # ATP120HBRP

  • Zoro # G900701813

product price:  $326.99
/ea
Free Shipping & Returns

Key Features

Sensing Technology
Adaptive Passive Infrared
Width
2 in
Material
ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
Series
Passive Infrared
Type
Sensors
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATP120HBRP
Zoro #
G900701813
UPC #
783585349251
Country of Origin
China

Dimensions

Width
2 in
Height
6 in
Diameter
1.5 in

Details

Sensing Technology
Adaptive Passive Infrared
Material
ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
Series
Passive Infrared
Type
Sensors
Color
Officewhite
Device Color
Office White
Storage Temperature
-20°F to 150°F (-29°C to 65°C); 0% to 95% non-condensing relative humidity
Version
Unit with Relay and Photocell
Isolated Relay
Normally open and normally closed, terminals available
CU300M
Control Unit, HD, Latching,
CU300A
Control Unit Manual-ON
Passive Infrared
Red LED
CU300HD
Wall Switch Wire Guard
Ambient Light
1 to 1000 foot candles
Sensing Coverage
50 Linear Feet
Power Requirements
24V DC nominal, 33mA from Hubbell CU series control unit
Sensitivity
Adaptive 0 to 100%
Industry Standard(s)
ASHRAE 90.1 Compliant cULus Listed To UL244A
Load Capacity
Load Is A Function Of The Control Unit
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Controls - Ambient Light - 1 to 1000 foot candles Controls - Sensitivity - Adaptive 0 to 100% Controls - Time Delay - Test (8 seconds), adaptive 8 to 40 minutes Electrical - Isolated Relay - Normally open and normally closed, terminals available Electrical - Power Requirements - 24V DC nominal, 33mA from Hubbell CU series control unit Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 95% non-condensing relative humidity Sensing Indicators - Passive Infrared - Red LED
Indicator(s) Type
PIR= Red LED
Material - Mounting Hardware
Screw Mounting
Humidity
0% to 95% non-condensing relative humidity
Storage Temperature Range
-20°F to 150°F (-29°C to 65°C)
Style
Wall Mount
Supply Voltage
Low Voltage V
Photocell
Yes
Operating Cycles
6,000 Cycles Minimum
Item
Occupancy Sensor
Time Delay Adjustment Method
Adaptive
Installation Location
Wall Mount
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
104 Degrees F

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, OccupancySensors, Adaptive Technology Passive Infrared High Bay Wall MountSensor, 120 Square Feet Coverage, HighBay WithRelayRelay
