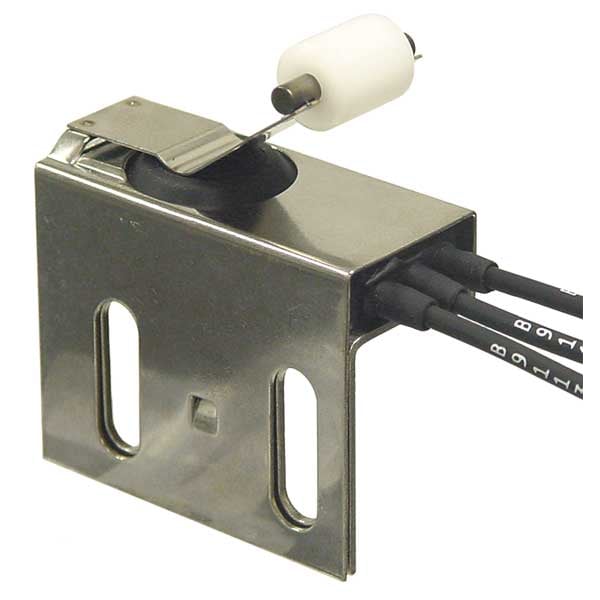

Water Proof Limit Switch, Lever, Roller, SPDT, 5A at 120V AC, Actuator Location: Top

  • Mfr # E1117-553

  • Zoro # G0311875

product price:  $74.59
/ea

Key Features

Basic Actuator Style - Limit Switch
Lever
Actuator Style - Limit Switch
Lever, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 120V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
E1117-553
Zoro #
G0311875
UPC #
-
Country of Origin
United States

Dimensions

Height
2.23"
Arm Width
0.86 in
Roller Dia.
0.38 in
Actuator Length
0.81"
Body Height - Limit Switch
1.53 in
Depth
0.97"
Body Width - Limit Switch
1.75 in
Roller Width
0.37 in
Actuator Length - Limit Switch
0.81 in
Body Depth - Limit Switch
0.97 in
Width
1.75"
Arm Depth
0.87 in
Overall Depth
0.86 in
Body Depth
0.86 in
Arm Length - Maximum
0.87 in
Mounting Hole Diameter
0.22 in
Overall Width
1.75 in
Roller Diameter
0.38 in
Body Height
1.53 in
Body Width
1.75 in

Details

Item
Water Proof Limit Switch
Basic Actuator Style - Limit Switch
Lever
Actuator Style - Limit Switch
Lever, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 120V
DC Contact Rating - Limit Switch
5A at 28V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Side Flange
Roller Material
Nylon
Electrical Connection
Flying Leads
NEMA Rating
No Nema Rating
Mounting Hole Spacing - Limit Switch
1.00 in
Travel
0.43 in Nominal
Number of Poles
1
IP Rating
IP68
Voltage Rating
120VAC/28VDC
Series
E1
Movement
One Way Vertical and Direction Horizontal
Contact Form
SPDT
Boot Sealed Actuator - Limit Switch
No
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Amps
5
Actuator Location
Top
Basic Actuator Style (Limit Switch)
Lever
DC Contact Rating
5 A @ 28 V
Boot Sealed Actuator (Limit Switch)
No
Body Style (Limit Switch)
Miniature
Actuator Style (Limit Switch)
Roller, Lever
Body Material
Stainless Steel
Mounting Hole - Limit Switch
(2) 0.22 in x 0.50 in Slot
Actuator Style
Roller Lever Plunger
Limit Switch Style
Water Proof Limit Switch
Arm Material
Stainless Steel
Operating Temp. Range
-40 Degrees to 185 Degrees F
Actuator Location (Limit Switch)
Top
Contact Form - Limit Switch
SPDT
AC Contact Rating
5 A @ 120 V
Stem Thread - Limit Switch
No Stem
Action
Momentary
NEMA Enclosure Rating
No Enclosure
Arm Adjustability
Fixed
Number of Mounting Holes
2
Hazardous Location Specification
Not Rated
Operating Force - Maximum
48 ozf
Includes Actuator
Actuator Included
Mounting Hole Vertical Center to Center Distance
13 mm
Total Travel
0.87 in
Roller Position
Top
Mounting Style
Side Flange
Boot Sealed Actuator
No Boot Included
Directional Movement
Linear
Operating Temperature - Maximum
185 Degrees F
Roller Adjustability
Fixed
Operating Temperature - Minimum
-40 Degrees F
Mounting Hole Horizontal Center to Center Distance
25 mm

Description

Roller Lever Plunger Limit Switch, Actuator Style - Limit Switch Lever, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 5A @ 120V, DC Contact Rating - Limit Switch 5A @ 28V, Contact Form- Switches SPDT, Actuator Length - Limit Switch 0.81 in, Body Height - Limit Switch 1.53 in, Body Width - Limit Switch 1.75 in, Body Depth - Limit Switch 0.97 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating No NEMA Rating
