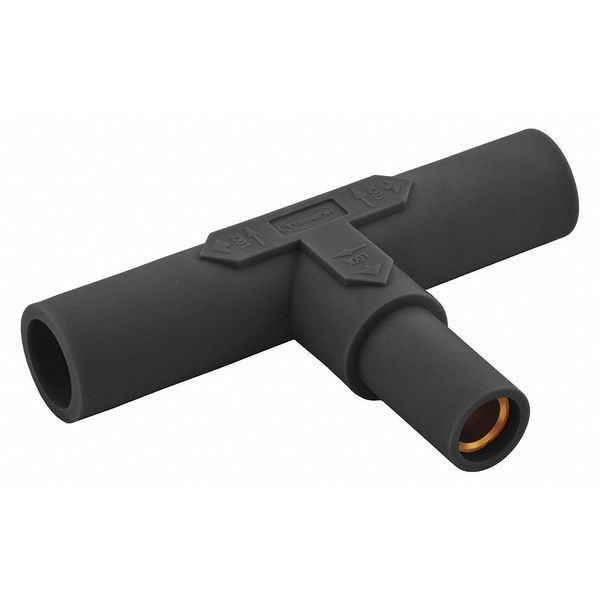

Hubbell Wiring Device-Kellems Paralleling Tee, 600VAC/250VDC, Taper HBL15PTBK - main

Paralleling Tee, 600VAC/250VDC, Taper

  • Mfr # HBL15PTBK

  • Zoro # G7070542

product price: $96.45
/ea
Free Shipping & Returns

Key Features

Type
Tee
Series
15
Male/Female
Female-Male-Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15PTBK
Zoro #
G7070542
UPC #
783585458571
Country of Origin
China

Dimensions

Overall Length
4.22 in
Overall Height
2.67 in
Overall Width
0.86 in
Display Size
Standard

Details

Item
Paralleling Tee
Type
Tee
Series
15
Male/Female
Female-Male-Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Single Pole Device Style
Taper Nose
Material
Thermoplastic Elastomer
Standards
cUL, UL
Color
Black
Fits
UL1691
Conductor Material
Brass
Amps AC/DC
150AC/DC
Amps AC
150 A
Mounting
Tee, Paralleling Tee Femal-Male-Male
Product Type
Paralleling Tee
NEMA Enclosure Rating
12, 3R, 4X
Gender Configuration
Male-Male-Female
Maximum Operating Temperature
75 Degrees C
Contact Material
Brass
Housing Color
Black
Compatible with Series
15
Housing Material
Thermoplastic Elastomer
Minimum Operating Temperature
-40 Degrees C
Material - Mounting Hardware
Cord Mounted
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Insulation
Insulated Body
Item Type
Paralleling Tee
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Paralleling Tee Femal-Male-Male
Application
Temporary Electrical Power
Number Of Conductors
1 Conductor
Connectivity
Plug-In
Current / Amperage Rating
150 A
Voltage Rating Description
600V AC/DC
Number Of Poles
1-Pole
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Amperage Rating
150 A

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Paralleling Tee
• 150 Amp Series
• Black
