Shop HUBBELL WIRING DEVICE-KELLEMS

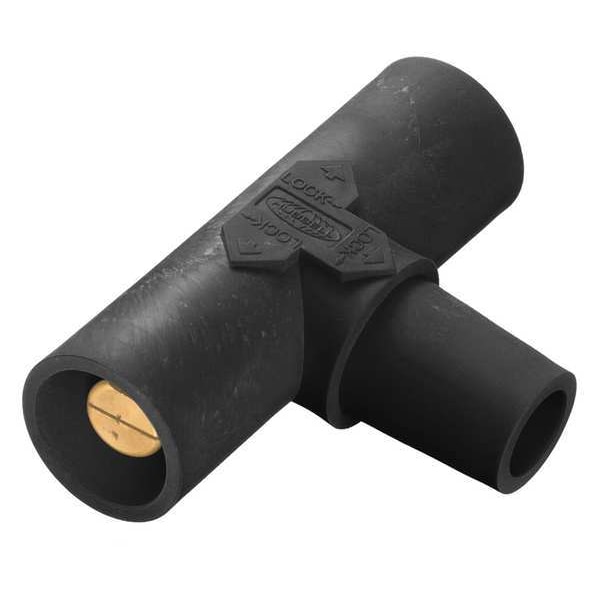

Paralleling Tee, Blk, 600VAC/250VDC

  • Mfr # HBLPTBK

  • Zoro # G6728775

product price:  $120.56
/ea
Free Shipping & Returns

Key Features

Type
Tees and 3-Fers
Series
16
Male/Female
Female-Male-Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBLPTBK
Zoro #
G6728775
UPC #
783585113104
Country of Origin
China

Dimensions

Overall Height
3.18 in
Overall Length
4.65 in
Overall Width
1.54 in

Details

Item
Paralleling Tee
Type
Tees and 3-Fers
Series
16
Male/Female
Female-Male-Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Single Pole Device Style
Taper Nose
Conductor Material
Brass
Standards
cUL, UL
Fits
UL1691
Material
Thermoplastic Elastomer
Color
Black
Amps AC/DC
300/400AC/DC
Product Type
Paralleling Tee
Housing Color
Black
Gender Configuration
Male-Male-Female
Minimum Operating Temperature
-40 Degrees C
Housing Material
Thermoplastic Elastomer
Contact Material
Brass
Compatible with Series
16
Maximum Operating Temperature
75 Degrees C
NEMA Enclosure Rating
12, 3R, 4X
Industry Standard(s)
UL 498 And UL1691
Style
Paralleling Tee Femal-Male-Male
Item Type
T-Fittings
Application
High Ampacity
Amperage Rating
400 A
Current / Amperage Rating
400 A
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of the device
Insulation
Insulated Body
Wattage
360000
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage Rating Description
600V AC/DC
Number Of Pins
1) In, 2) Out- Male-Female-Female

Description

Paralleling Tee, Contact Material Brass, Current Rating 400 A, Gender Configuration Male-Male-Female, Housing Color Black, Housing Material Thermoplastic Elastomer, Voltage Rating 600V AC, 600V DC, NEMA Enclosure Rating 12, 3R, 4X, Product Type Paralleling Tee, Compatible with Series 16, Maximum Operating Temperature 75 Degrees C, Minimum Operating Temperature -40 Degrees C, Overall Height 3.18 in, Overall Length 4.65 in, Overall Width 1.54 in
