  9. Paralleling Tee, Grn, 150AC/DC, Taper Nose

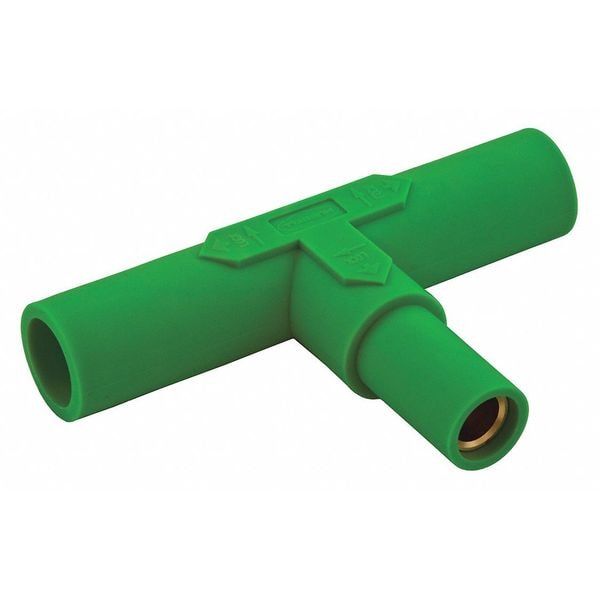

Hubbell Wiring Device-Kellems Paralleling Tee, Grn, 150AC/DC, Taper Nose HBL15PTGN - main

Paralleling Tee, Grn, 150AC/DC, Taper Nose

  • Mfr # HBL15PTGN

  • Zoro # G7160011

product price: $96.45
/ea
Free Shipping & Returns

Key Features

Type
Tee
Series
15
Male/Female
Female-Male-Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15PTGN
Zoro #
G7160011
UPC #
783585458595
Country of Origin
China

Dimensions

Overall Height
2.67 in
Overall Length
4.22 in
Overall Width
0.86 in
Display Size
Standard

Details

Item
Paralleling Tee
Type
Tee
Series
15
Male/Female
Female-Male-Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Color
Green
Conductor Material
Brass
Fits
UL1691
Standards
cUL, UL
Single Pole Device Style
Taper Nose
Material
Thermoplastic Elastomer
Amps AC/DC
150AC/DC
Amps AC
150 A
Mounting
Tee, Paralleling Tee Femal-Male-Male
Product Type
Paralleling Tee
Minimum Operating Temperature
-40 Degrees C
Housing Color
Green
Housing Material
Thermoplastic Elastomer
Compatible with Series
15
NEMA Enclosure Rating
12, 3R, 4X
Maximum Operating Temperature
75 Degrees C
Gender Configuration
Male-Male-Female
Contact Material
Brass
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Application
Temporary Electrical Power
Connectivity
Plug-In
Item Type
Paralleling Tee
Number Of Poles
1-Pole
Amperage Rating
150 A
Style
Paralleling Tee Femal-Male-Male
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Material - Mounting Hardware
Cord Mounted
Insulation
Insulated Body
Current / Amperage Rating
150 A
Voltage Rating Description
600V AC/DC
Number Of Conductors
1 Conductor

Description

The HUBBELL Paralleling Tee, Series 15, is a single pole device intended for use in temporary electrical power distribution. This plug-in paralleling tee features a taper nose and supports connections with a female-male-male configuration. It is rated for operation at voltages up to 600V AC or 250V DC. The housing is constructed from thermoplastic elastomer and includes an insulated body; suitable for indoor dry locations.


Key Features of the HUBBELL Paralleling Tee:

  • Amperage/Voltage Rating: Rated for 150 A (AC/DC), up to 600V AC or 250V DC

  • Configuration: Female-Male-Male gender; single conductor, one-pole design

  • Material: Brass contacts and conductor; thermoplastic elastomer housing

  • Mounting Style: Cord mounted; plug-in connectivity with taper nose style

  • NEMA Enclosure Ratings: Complies with NEMA Types 12, 3R, and 4X

  • Temperature Range: Rated for continuous operation from -40°C (without impact) to +75°C

  • Standards Compliance: UL/cUL listed; meets NEC and ANSI/NFPA 70 standards; fits UL1691 requirements
