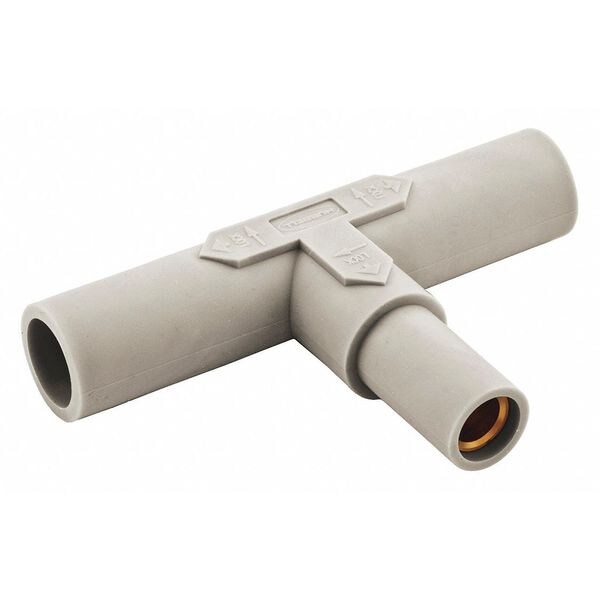

Hubbell Wiring Device-Kellems Paralleling Tee, Whte, 600VAC/250VDC HBL15PTW - main

Paralleling Tee, Whte, 600VAC/250VDC

  • Mfr # HBL15PTW

  • Zoro # G7086825

product price: $96.45
/ea
Free Shipping & Returns

Key Features

Type
Tee
Series
15
Male/Female
Female-Male-Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15PTW
Zoro #
G7086825
UPC #
783585458618
Country of Origin
China

Dimensions

Overall Width
0.86 in
Overall Length
4.22 in
Overall Height
2.67 in
Display Size
Standard

Details

Item
Paralleling Tee
Type
Tee
Series
15
Male/Female
Female-Male-Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Fits
UL1691
Material
Thermoplastic Elastomer
Color
White
Conductor Material
Brass
Single Pole Device Style
Taper Nose
Standards
cUL, UL
Amps AC/DC
150AC/DC
Amps AC
150 A
Mounting
Tee, Paralleling Tee Femal-Male-Male
Product Type
Paralleling Tee
Compatible with Series
15
Housing Material
Thermoplastic Elastomer
NEMA Enclosure Rating
12, 3R, 4X
Gender Configuration
Male-Male-Female
Housing Color
White
Contact Material
Brass
Style
Paralleling Tee Femal-Male-Male
Current / Amperage Rating
150 A
Insulation
Insulated Body
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Amperage Rating
150 A
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Material - Mounting Hardware
Cord Mounted
Item Type
Paralleling Tee
Voltage Rating Description
600V AC/DC
Number Of Conductors
1 Conductor
Application
Temporary Electrical Power
Connectivity
Plug-In
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Number Of Poles
1-Pole

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Paralleling Tee
• 150 Amp Series
• White
