  11. Pilot Lit Wall Swtch, 1-Pole, 120/277V, 20A

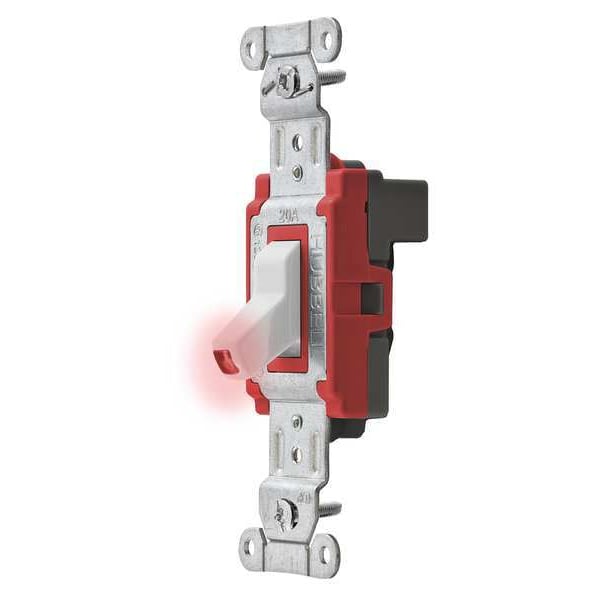

Hubbell Wiring Device-Kellems Pilot Lit Wall Swtch, 1-Pole, 120/277V, 20A SNAP1221PLW - main

Pilot Lit Wall Swtch, 1-Pole, 120/277V, 20A

  • Mfr # SNAP1221PLW

  • Zoro # G4577036

product price: $22.95
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
White
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1221PLW
Zoro #
G4577036
UPC #
783585186238
Country of Origin
United States

Dimensions

Overall Height
1.7 in
Overall Width
1.3 in
Width
1.3 in
Length
4.18 in
Height
1.74 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Pilot Light Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
White
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Antimicrobial
No
Standards
UL Listed
Rated HP
1 to 2
Description/Special Features
Light On with Load On
Market
Industrial
Number of Switches
1
Voltage Rating
120/277V AC
Horsepower Rating
2 hp
Housing Material
Thermoplastic
Resistance Properties
Impact Resistant
Minimum Operating Temperature
-40 Degrees F
Pilot Light
Yes
Current Rating
20 A
Wire Connection Type
Modular Wiring
Maximum Operating Temperature
167 Degrees F
Style
Single Pole
Type
Toggle
Temperature Rise
30°C maximum at rated current
Overload
Minimum 4.8 times rated current for 100 cycles
Terminal Accommodations
Uses SNAPConnect Connector
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Contacts
Silver Alloy
Toggle Material
Thermoplastic
Terminals
Brass
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Toggle Color
White
Base Material
Thermoplastic, Black
Max. Continuous Current
20A
Max. Working Voltage
277V AC
Flammability
UL 94V-2
Top Material
Thermoplastic, Red
Series
Pilot Light
Indicator
Light On with Load On
Number Of Poles
Single Pole
Voltage Rating Description
120-277 VAC
Temperature Rise - Max.
30°C maximum at rated current
Amperage Rating
20 A
Item Type
Single Pole Pilot Toggle Switch
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Industry Standard(s)
UL Listed
Material
Thermoplastic
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Indicator(s) Type
Red LED
Current / Amperage Rating
20 A

Description

Pilot Light Wall Switch, Color White, Current Rating 20 A, Pilot Light Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
