  11. Pilot Lit Wall Swtch, 1-Pole, 120/277V, Wht

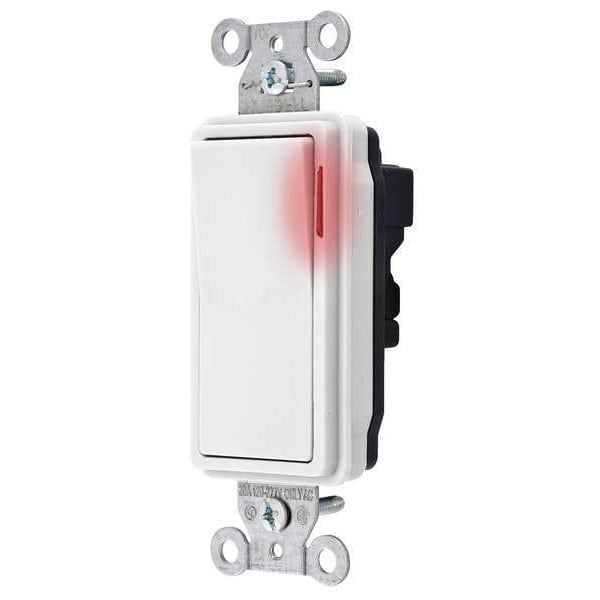

Hubbell Wiring Device-Kellems Pilot Lit Wall Swtch, 1-Pole, 120/277V, Wht SNAP2121PLW - main

Pilot Lit Wall Swtch, 1-Pole, 120/277V, Wht

  • Mfr # SNAP2121PLW

  • Zoro # G4536612

product price: $43.45
/ea

Key Features

Switch Type
Single Pole
Switch Style
Rocker
Amps AC
20 A
Color
White
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2121PLW
Zoro #
G4536612
UPC #
783585186351
Country of Origin
United States

Dimensions

Overall Height
1.5 in
Overall Width
1.4 in
Height
1.54 in
Length
4.28 in
Width
1.44 in
Dimensions
4.28 in x 1.44 in x 1.54 in

Details

Item
Pilot Light Wall Switch
Switch Type
Single Pole
Switch Style
Rocker
Amps AC
20 A
Color
White
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Antimicrobial
No
Standards
UL Listed
Rated HP
1 to 2
Description/Special Features
Light On with Load On
Wire Connection Type
Modular Wiring
Grounding
Grounded
Current Rating
20 A
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
2 hp
Voltage Rating
120/277V AC
Number of Switches
1
Pilot Light
Yes
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Resistance Properties
Impact Resistant
Housing Material
Thermoplastic
Type
Rocker/Decorator
Style
Single Pole
Base Material
Thermoplastic, Black
Terminals
Brass
Toggle Color
White
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Temperature Rise
30°C maximum at rated current
Overload
Minimum 4.8 times rated current for 100 cycles
Top Material
Thermoplastic, Red
Terminal Accommodations
Uses SNAPConnect Connector
Max. Working Voltage
277V AC
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Continuous Current
20A
Rocker Material
Thermoplastic
Flammability
UL 94V-2
Contacts
Silver Alloy
Indicator(s) Type
Red LED
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Voltage Rating Description
120-277 VAC
Item Type
Single Pole Style Line Pilot Decorator Switch
Material
Thermoplastic
Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Series
Pilot Light
Indicator
Light On with Load On
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current
Number Of Poles
Single Pole
Current / Amperage Rating
20 A

Description

Pilot Light Wall Switch, Color White, Current Rating 20 A, Pilot Light Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Modular Wiring, Grounding Grounded, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
