  11. Specification Grade Commercial Switch

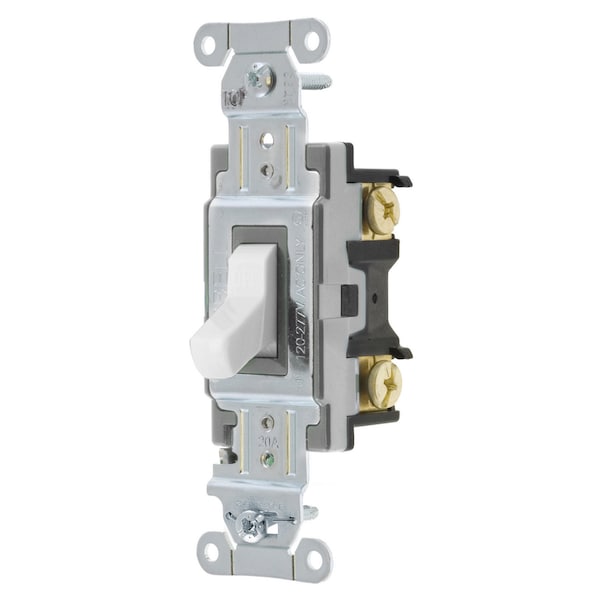

Hubbell Wiring Device-Kellems Specification Grade Commercial Switch CSB220W - main

Specification Grade Commercial Switch

  • Mfr # CSB220W

  • Zoro # G800701128

product price: $12.99
/ea

Key Features

Switch Type
Double Pole
Color
White
Voltage
120/277V AC
Style
Double Pole
Type
Toggle
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CSB220W
Zoro #
G800701128
UPC #
783585154152
Country of Origin
China

Dimensions

Wire Size
#14 AWG to #10 AWG
Dimensions
4.18 in x 1.49 in x 1.83 in

Details

Item
Double Pole Commercial Toggle Switch
Switch Type
Double Pole
Color
White
Voltage
120/277V AC
Style
Double Pole
Type
Toggle
Max. Continuous Current
20A
Temp. Rise
30°C maximum at rated current
Switch Grade
Specification Grade
Number Of Poles
Double Pole
Wiring Style
Back and Side Wired
Current Rating
20 A
Carton Quantity
10
Series
General Purpose
Amperage
20 A
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Overload
Minimum 4.8 times rated current for 100 cycles
Max. Working Voltage
277V AC
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Switch Handle Positions
2
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Connectivity
Back and Side Wired
Flammability
UL 94V-2
Toggle Color
White
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Product Type
Toggle-switches
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Temperature Rise
30°C maximum at rated current
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Voltage Rating
120-277 VAC

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Double Pole, 20A 120/277V AC, Back and SideWired, White
