  11. Pilt Lit Wall Swtch, 1-Pole, 120/277V, Ivry

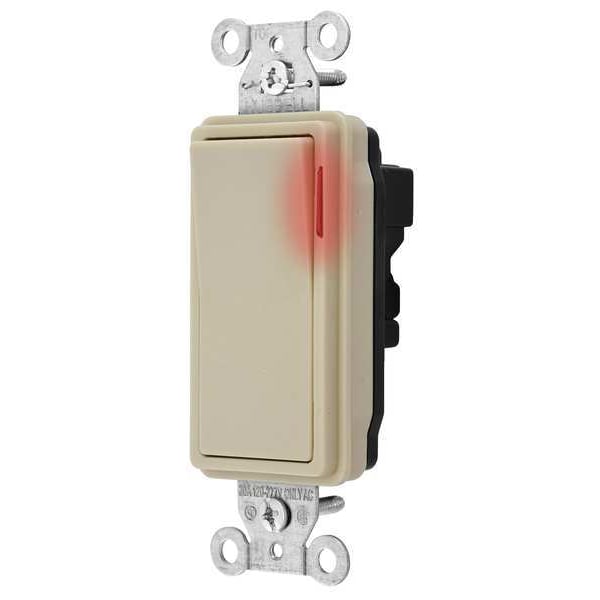

Hubbell Wiring Device-Kellems Pilt Lit Wall Swtch, 1-Pole, 120/277V, Ivry SNAP2121PLI - main

Pilt Lit Wall Swtch, 1-Pole, 120/277V, Ivry

  • Mfr # SNAP2121PLI

  • Zoro # G4547952

product price: $45.89
/ea

Key Features

Switch Type
Single Pole
Switch Style
Rocker
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2121PLI
Zoro #
G4547952
UPC #
783585189819
Country of Origin
United States

Dimensions

Overall Width
1.4 in
Overall Height
1.5 in
Height
1.54 in
Width
1.44 in
Length
4.28 in
Dimensions
4.28 in x 1.44 in x 1.54 in

Details

Item
Pilot Light Wall Switch
Switch Type
Single Pole
Switch Style
Rocker
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Description/Special Features
Light On with Load On
Standards
UL Listed
Rated HP
1 to 2
Antimicrobial
No
Maximum Operating Temperature
167 Degrees F
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
2 hp
Current Rating
20 A
Voltage Rating
120/277V AC
Grounding
Grounded
Housing Material
Thermoplastic
Wire Connection Type
Modular Wiring
Number of Switches
1
Pilot Light
Yes
Resistance Properties
Impact Resistant
Type
Rocker/Decorator
Style
Single Pole
Toggle Color
Ivory
Top Material
Thermoplastic, Red
Max. Continuous Current
20A
Contacts
Silver Alloy
Rocker Material
Thermoplastic
Overload
Minimum 4.8 times rated current for 100 cycles
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Temperature Rise
30°C maximum at rated current
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Terminal Accommodations
Uses SNAPConnect Connector
Max. Working Voltage
277V AC
Flammability
UL 94V-2
Base Material
Thermoplastic, Black
Terminals
Brass
Number Of Poles
Single Pole
Industry Standard(s)
UL Listed
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Material
Thermoplastic
Item Type
Single Pole Style Line Pilot Decorator Switch
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Temperature Rise - Max.
30°C maximum at rated current
Current / Amperage Rating
20 A
Series
Pilot Light
Indicator
Light On with Load On
Amperage Rating
20 A
Voltage Rating Description
120-277 VAC
Indicator(s) Type
Red LED

Description

Pilot Light Wall Switch, Color Ivory, Current Rating 20 A, Pilot Light Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Modular Wiring, Grounding Grounded, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
