Shop HUBBELL WIRING DEVICE-KELLEMS

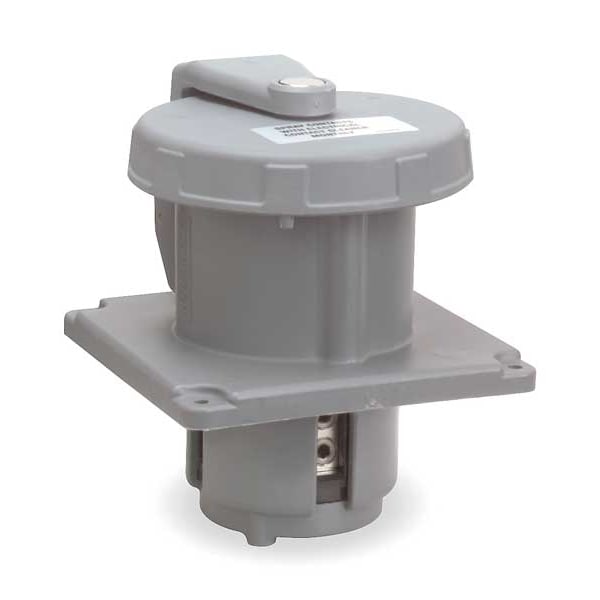

Pin & Sleeve Inlet, 100 A, 125/250V AC, Single Phase, 3 Pole, IEC Grounding, Gray

  • Mfr # M4100B12R

  • Zoro # G2869151

product price:
$
946.35
/ea
Free Shipping & Returns

Key Features

Current Rating
100 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
M4100B12R
Zoro #
G2869151
UPC #
783585410012
Country of Origin
United States
Item
Pin & Sleeve Inlet
Current Rating
100 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
IP Rating
IP67
Wire Connection Type
Screw Terminals
Housing Color
Gray
Cap Type
No Cap or Cover
Standards
CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1 IEC 60309-2
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Grounding Style
IEC
Features
Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin
Body Material
Nylon
Body Material - Pin and Sleeve
Nylon
Receptacle Type
Pin and Sleeve
Insulation Material
Thermoplastic
For Environment
Marine
Flange Type
Flanged
Reverse Service
Yes
Maximum Operating Temperature
75 Degrees C
Housing Material
Polybutylene Terephthalate
Minimum Operating Temperature
-40 Degrees C
Switch Rated
Yes
Number of Pins
4
UL 94 Flammability Rating
V-0
Connection Orientation
Straight
Grounding
Grounded
Number of Gangs
1
NEMA Enclosure Rating
12, 4X

Description

Corrosion Resistant Devices that Withstand the Most Abusive Environments - Hubbell offers a superior grade of 100A IEC Pin and Sleeve designed for use in the most demanding environments. These devices feature nickel plated solid brass pins for long life and reliable electrical contact in the most corrosive environments. They have a high visibility yellow supertough nylon housing. The heavy duty external cord clamps provide maximum cord retention to maintain secure terminations. The screws and fasteners are made from stainless steel.
• Solid one-piece pins for reliable electrical contact
• Gasketed sealing ring provides watertight seal
• Raised collar surrounds each phase pin
