Shop HUBBELL WIRING DEVICE-KELLEMS

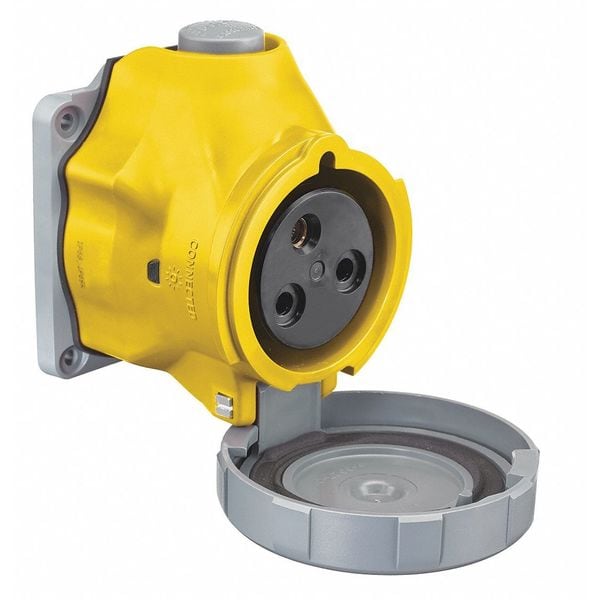

Pin & Sleeve Receptacle, 32 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow, NEMA 4X

  • Mfr # HBLS332R4W
  • Zoro # G2481416
product price:
$
502.20
/ea
Free Shipping & Returns

Key Features

Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
4X
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBLS332R4W
Zoro #
G2481416
UPC #
-
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Face Diameter
3.13 in
Minimum Wire Size
12 AWG
Fits Chest Size
Approved as a Disconnecting Means for Motor Circuits and Branch Circuits, Mates with Existing Installed Base of IEC 60309-2 Pin and Sleeve Devices, Unswitched Ground

Details

Item
Pin & Sleeve Receptacle
Current Rating
32 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Yellow
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR285C, File E105752, UL Listed
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant
Grounding Style
IEC
Switch Rated
Yes
Body Material - Pin and Sleeve
Valox 357
Power Indication
No
HP
2 hp
Body Material
Valox 357
Features
Approved as a Disconnecting Means for Motor Circuits and Branch Circuits, Mates with Existing Installed Base of IEC 60309-2 Pin and Sleeve Devices, Unswitched Ground
Minimum Operating Temperature
-40 Degrees C
Market
Industrial
Flange Type
Flanged
Housing Material Grade
Valox 357
Number of Gangs
1
Connection Orientation
Straight
Reverse Service
No
Maximum Operating Temperature
75 Degrees C
Shrouded
Yes
Horsepower Rating
2 hp
Power Indicating Light
Yes
Housing Material
PBT
Series
Advantage Switch-Rated
Style
IP69k NEMA 4X
Grounding
Grounded
UL 94 Flammability Rating
V-0

Description

The HUBBELL AdvantageTM Series Pin and Sleeve Receptacle is a 32A, single-phase device intended for use in industrial electrical applications. It features a compact, straight connection orientation and is rated for use as a disconnecting means in motor and branch circuits. The receptacle mates with existing IEC 60309-2 pin and sleeve devices, compatible with IEC 60309-2 pin and sleeve devices. Its housing is constructed from Valox 357 polybutylene terephthalate (PBT), constructed from Valox 357 polybutylene terephthalate (PBT).


Key Features of the HUBBELL AdvantageTM Series Pin & Sleeve Receptacle:

  • Current/Voltage Rating: Rated for 32 A at 125V AC; supports up to 2 hp motors

  • Housing Material: Valox 357 polybutylene terephthalate (PBT)

  • NEMA/IP Ratings: NEMA Type 4X enclosure; IP69k rated

  • Temperature Range: Operates from -40°C to +75°C

  • Circuit Compatibility: Rated as a disconnecting means for motor circuits and branch circuits

  • Mating Compatibility: Compatible with IEC 60309-2 pin & sleeve devices

  • Power Indication: Equipped with power-indicating LED lights; unswitched ground design

  • Wire Size Range: Accepts wire sizes from 12 AWG to 8 AWG via screw terminals

  • Standards Compliance: UL Listed, CSA Certified (LR285C), File E105752
