  6. Pin & Sleeve Plug, 60 A, 600V AC, Three Phase, 4 Pole, Style 1 Grounding, Gray, NEMA Not Rated

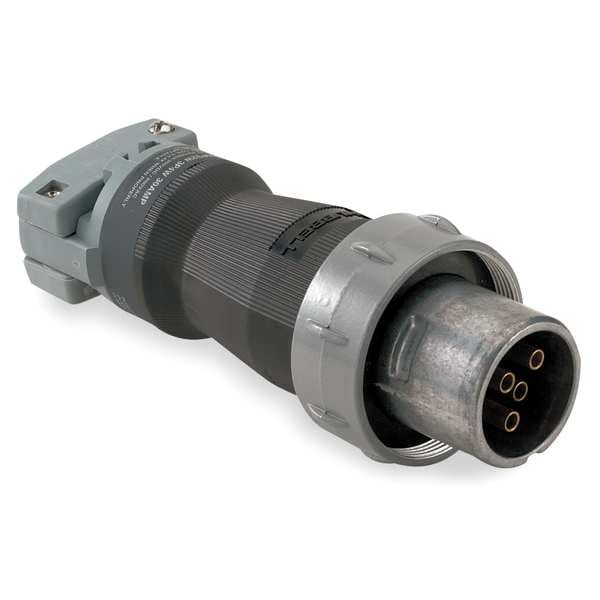

Hubbell Wiring Device-Kellems Pin & Sleeve Plug, 60 A, 600V AC, Three Phase, 4 Pole, Style 1 Grounding, Gray, NEMA Not Rated HBL560PS1W - main

Pin & Sleeve Plug, 60 A, 600V AC, Three Phase, 4 Pole, Style 1 Grounding, Gray, NEMA Not Rated

  • Mfr # HBL560PS1W

  • Zoro # G3193967

product price:  $429.30
/ea
Free Shipping & Returns

Key Features

Current Rating
60 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
4
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL560PS1W
Zoro #
G3193967
UPC #
783585010663
Country of Origin
United States

Dimensions

Overall Length
9.6 in
Outside Diameter
3.7 in
Maximum Wire Size
4 AWG
For Minimum Cable Diameter
0.5 in
Minimum Wire Size
6 AWG
For Maximum Cable Diameter
1.45 in
Display Size
Standard Sized
Wire Size
#6 AWG to #4 AWG

Details

Item
Pin & Sleeve Plug
Current Rating
60 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
4
Number of Wires
4
IP Rating
Not Rated
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Gray
Cap Type
No Cap or Cover
Standards
CSA Certified to CSA Spec. C22.2 No. 159, UL Listed and CSA Certified Type 4X, UL Standard 1682, UL 50, and UL 1010
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Features
All-Brass Sleeve Contacts Provide Reliable Electrical Contact, Catalog Number and Rating Visible While in Use, Locking Ring Provides UL Type 4X Watertight, Dust-Tight Seal
Grounding Style
Style 1
Body Material
Valox 357 Housing and Aluminum Shroud
Body Material - Pin and Sleeve
Valox 357 Housing and Aluminum Shroud
Switch Rated
No
Material
Composite
Application
Metallic with Nylon Shroud
NEMA Enclosure Rating
Not Rated
Housing Material
Non-Metallic
Minimum Operating Temperature
-40 Degrees F
Shrouded
Yes
Power Indicating Light
No
Compatible with Series
Insulgrip
Reverse Service
No
Maximum Operating Temperature
75 Degrees C
Mounting Box
Stainless Steel (300 Series)
Hub Style
Standard
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
Environmental Conditions
Watertight
Style
Standard Service,Style 1 Grounding
Cord Type
All Portable
Industry Standard(s)
CSA Certified to CSA Spec. C22.2 No. 159 UL Listed and CSA Certified Type 4X UL Standard 1682,UL 50, and UL 1010
Material - Mounting Hardware
Cord Mounted
Series
UL 1686 Class 1 Insulgrip®
Connection Type
Screw Terminals

Description

The HUBBELL Pin and Sleeve Plug, 4P, 5W, 60A, 600VAC is an electrical connector rated for use in industrial and commercial settings. It features a composite construction with a Valox 357 non-metallic housing and an aluminum shroud for durability. The plug is rated for up to 60 amps and operates at voltages up to 600VAC/250VDC. Its design includes pressure terminal screws for reliable connectivity and accommodates wire sizes from #6 AWG to #4 AWG.


Key Features of the HUBBELL Pin & Sleeve Plug:

  • Current/Voltage Rating: Rated for 60 A and up to 600VAC/250VDC operation

  • Construction: Composite body with Valox 357 housing and aluminum shroud; non-metallic exterior

  • Watertight Seal: Locking ring; UL Type 4X watertight, dust-tight

  • Sleeve Contacts: All-brass sleeve contacts

  • Cord Compatibility: Compatible with specified portable cord types

  • Wire Accommodation: Accepts wire sizes from #6 AWG to #4 AWG; maximum cable diameter of 1.45 in., minimum of 0.50 in.

  • Temperature Range: Operates between -40°C (min) and +75°C (max)

  • Standards Compliance: CSA Certified (C22.2 No.159), UL Listed Type 4X, meets UL Standards (1682, UL50, UL1010)

  • Identification: Catalog number and rating are visible while in use; terminals identified per UL standards
