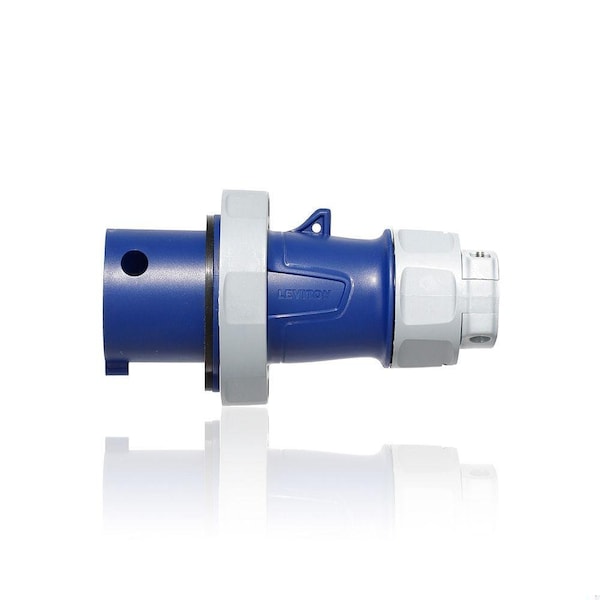

Leviton Pin & Sleeve Plug, 30/32 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 3R, 4X, 6P, 12 430P9WLEV - main

Pin & Sleeve Plug, 30/32 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 3R, 4X, 6P, 12

  • Mfr # 430P9WLEV

  • Zoro # G816091596

product price:  $241.12
/ea
Free Shipping & Returns

Key Features

Current Rating
30/32 A
Voltage Rating
250V AC
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP68, IP69K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
430P9WLEV
Zoro #
G816091596
UPC #
078477921494
Country of Origin
Mexico

Dimensions

Maximum Wire Size
8 AWG
Overall Length
6.57 in
Minimum Wire Size
12 AWG
Outside Diameter
3.62 in

Details

Item
Pin & Sleeve Plug
Current Rating
30/32 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP68, IP69K
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Blue
Standards
CE, CSA C22.2, IEC 60309-1, 60309-2, UL 1686 C2, UL 1682
Resistance Properties
Corrosion Resistant, UV Resistant
NEMA Enclosure Rating
3R, 4X, 6P, 12
Grounding Style
IEC
Features
Hex Style Socket Screws for Terminals
Hazardous Location Specification
Not Rated
UL 94 Flammability Rating
V-0
Market
Industrial
Compatible with Series
LEV
For Environment
Corrosive
Housing Material
Nylon
Horsepower Rating
3 hp

Description

Pin and Sleeve Plug
