  6. Pin & Sleeve Plug, 63 A, 415V AC, Single Phase, 4 Pole, IEC Grounding, Red, NEMA Not Rated

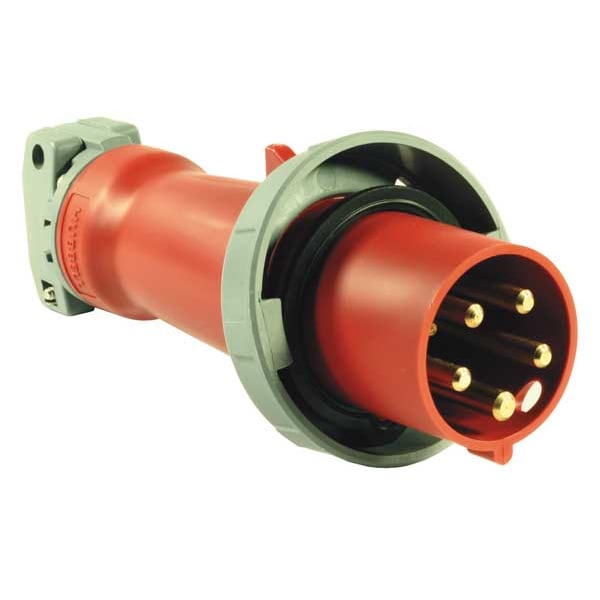

Hubbell Wiring Device-Kellems Pin & Sleeve Plug, 63 A, 415V AC, Single Phase, 4 Pole, IEC Grounding, Red, NEMA Not Rated HBL560P6W - main

Pin & Sleeve Plug, 63 A, 415V AC, Single Phase, 4 Pole, IEC Grounding, Red, NEMA Not Rated

  • Mfr # HBL560P6W

  • Zoro # G6930725

product price:  $500.85
/ea
Free Shipping & Returns

Key Features

Voltage Rating
415V AC
Phase
Single
Number of Poles
4
Number of Wires
5
IP Rating
IP68, IP69K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL560P6W
Zoro #
G6930725
UPC #
783585405773
Country of Origin
United States

Dimensions

Overall Length
10.14 in
For Minimum Cable Diameter
0.5 in
Face Diameter
2.72 in
Maximum Wire Size
2 AWG
Minimum Wire Size
8 AWG
For Maximum Cable Diameter
1.45 in
Display Size
Standard Sized Product
Wire Size
#8 AWG to #2 AWG

Details

Item
Pin & Sleeve Plug
Current Rating
63 A
Voltage Rating
415V AC
Phase
Single
Number of Poles
4
Number of Wires
5
IP Rating
IP68, IP69K
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Red
Cap Type
No Cap or Cover
Standards
CSA Certified File LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL Listed to UL1682
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material
Zytel 801 Nylon
Features
Rugged One-Piece Housing, Thermoset Polyester Contact Carrier
Grounding Style
IEC
HP
10 hp
Body Material - Pin and Sleeve
Zytel 801 Nylon
Switch Rated
No
Application
High Ampacity Watertight Connections
Material
Thermoplastic
Power Indicating Light
No
Shrouded
Yes
Housing Material
Non-Metallic
Minimum Operating Temperature
-40 Degrees F
Reverse Service
No
NEMA Enclosure Rating
Not Rated
Horsepower Rating
10 hp
Maximum Operating Temperature
75 Degrees C
Hub Style
Standard
Wattage
36000
Style
Standard Service
Dielectric Strength
Withstands 3000V Minimum in
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability -V-0 Environmental - Ingress Protection - Type 3R, 3RX, 4X and IP68, IP69k Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Number Of Conductors
5-Wire Grounding
Series
HBL Heavy Duty
Environmental Conditions
Watertight
Industry Standard(s)
Listed To Standard UL1682 CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed to UL1682
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body
Connection Type
Screw Terminals

Description

Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.
• Rugged one-piece housing
• Thermoset polyester contact carrier
• Solid one-piece pins for reliable electrical contact
