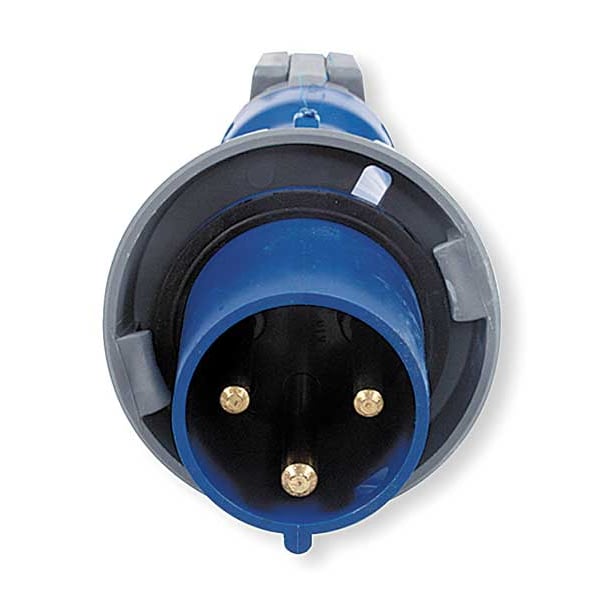

Watertight Pin & Sleeve Plug, 60 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue

  • Mfr # HBL360P6W
  • Zoro # G3369213
product price:
$
429.99
/ea
Free Shipping & Returns

Key Features

Current Rating
60 A
Number of Poles
2
Number of Wires
3
IP Rating
IP67
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL360P6W
Zoro #
G3369213
UPC #
783585403823
Country of Origin
United States
Item
Watertight Pin & Sleeve Plug
Current Rating
60 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material - Pin and Sleeve
Zytel 801 Nylon
Grounding Style
IEC
Body Material
Zytel 801 Nylon
Features
Gasketed Sealing Ring Provides Watertight Seal
Switch Rated
No
Application
High Ampacity Connections
Material
Composite
NEMA Enclosure Rating
Not Rated
Housing Material
PBT
Reverse Service
No
Shrouded
Yes
Power Indicating Light
No
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
75 Degrees C
Hub Style
Standard
Environmental Conditions
Watertight
Style
Standard Service
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - HB or Better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperature - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing. Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Industry Standard(s)
CSA Standard C22.2 No. 182.1 UL Classified to IEC60309-1 UL Listed, File E146032
Series
Heavy Duty
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Type
All Portable
Connection Type
Screw Terminals
UL 94 Flammability Rating
HB
Grounding
Grounded

Dimensions

Overall Length
10.14 in
For Minimum Cable Diameter
0.83 in
Maximum Wire Size
2 AWG
Face Diameter
2.72 in
For Maximum Cable Diameter
1.45 in
Minimum Wire Size
8 AWG
Wire Size
#8 AWG to #2 AWG
Display Size
Standard Sized
Wire Rope Length
10.14 in
Length
10.14 in
Fits Chest Size
Gasketed Sealing Ring Provides Watertight Seal

Description

The HUBBELL IEC Pin and Sleeve Plug is a watertight electrical connector rated for operation up to 60A at 250V AC. This plug features a rugged, non-metallic Zytel 801 nylon housing and is intended for environments requiring moisture and impact resistance, as specified by product ratings. It accommodates single-phase power with two poles and three wires, using screw terminals provide a means of connecting wires for secure connection.


Key Features of the HUBBELL IEC Pin and Sleeve Plug:

  • Current/Voltage Rating: Rated for 60 amps at 250V AC, single phase

  • Watertight Construction: Gasketed sealing ring; IP67 ingress protection rating

  • Material: Non-metallic Zytel 801 nylon body; rated for impact resistance per applicable standards

  • Cord Compatibility: Accepts cable diameters from 0.83 in to 1.45 in; cord mounted design

  • Wire Size Range: Supports #8 AWG to #2 AWG conductors via pressure terminal screws

  • Operating Temperature Range: -40°C to +75°C (continuous)

  • Standards Compliance: Meets CSA Standard C22.2 No.182.1, UL Classified to IEC60309-1, UL Listed (File E146032)

  • Grounding Style: IEC grounding configuration with shrouded contacts for added protection
