Pin & Sleeve Receptacle, 20/30 A, - Phase, 3 Pole, NEMA 4X

  • Mfr # BB2030N
  • Zoro # G3471955
product price:
$
59.55
/ea

Key Features

Current Rating
20/30 A
Type
Back Box
Color
Gray
Material
Thermoplastic
IP Rating
IP67
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BB2030N
Zoro #
G3471955
UPC #
783585390871
Country of Origin
United States

Dimensions

Width
3 7/8 in
Length
4 3/8 in
Length (Straight Wireway)
4 3/8 in
Overall Length
5.67 in
Overall Height
3.91 in
Hub Diameter
1 in
Overall Width
4.44 in
Dimensions
5.67 in x 4.44 in x 3.91 in
Height
3.91 in
Display Size
For 16, 20, 30 and 32 Amp Devices
Wire Rope Length
5.67 in

Details

Item
Mounting Box
Current Rating
20/30 A
Type
Back Box
Color
Gray
Material
Thermoplastic
IP Rating
IP67
NEMA Enclosure Rating
4X
Includes
Mounting Screws
For Use With
Twist-Lock(R) Devices
Housing Color
Gray
Cap Type
No Cap or Cover
Resistance Properties
Moisture Resistant
Box Type
Feed Through
Amps
20/30 A
Number of Wires
4
Use With
IEC 309 Pin and Sleeve Devices
Hub
1 in
Angle
15 Degrees
Number of Poles
3
Standards
UL Raintight and External Icing Test
Material Type
Non-Metallic
Mount Type
Surface
Box Angle
15 Degrees
Hub Type
Dead End
Market
Industrial
Number of Gangs
1
Material - Mounting Hardware
Mounting Screws
Construction
Molded
Style
For 20 And 30A Watertight Safety Shroud Receptacles And Inlets
Application
15 Degree Angled
Industry Standard(s)
UL Raintight and External Icing Test
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Environmental - Moisture Resistance - IP67 Suitability
Cable Entry
Through Hub
Knockouts
1" NPT
Number Of Outlets
Accepts 1-Device
Shell Material
Thermoplastic

Description

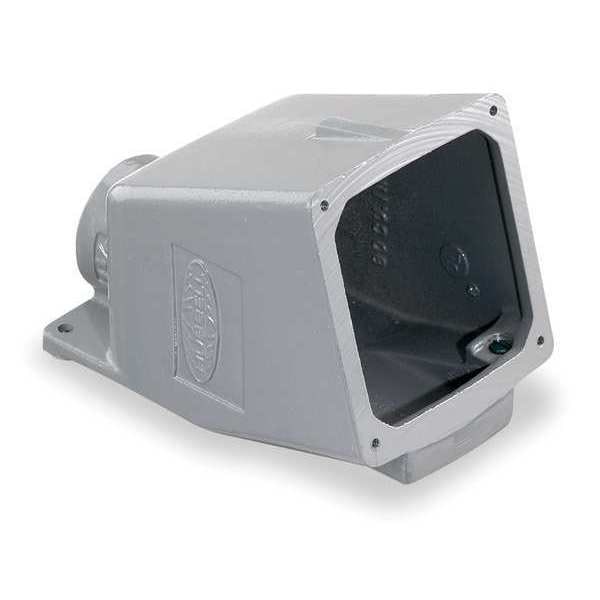

The HUBBELL Angl Back Box is a non-metallic, molded back box compatible with IEC 309 Pin and Sleeve devices, including Twist-Lock(R) series. It features a 15-degree angled feed-through design and accommodates 20A and 30A watertight safety shroud receptacles and inlets. The unit includes a 1" NPT hub for cable entry, accepts one device, and is suitable for surface mounting in industrial settings.


Key Features of the HUBBELL Angl Back Box:

  • Current Rating: Rated for use with 20/30 amp devices

  • Angle: 15-degree angled box design features a 15-degree angled box design for wiring access

  • Cable Entry: Through a dead end, 1" NPT hub

  • Material Type: Non-metallic thermoplastic construction; IP67 rated

  • NEMA Enclosure Rating: Rated NEMA 4X

  • Standards: Complies with UL Raintight and External Icing Test requirements

  • Mounting Hardware: Includes mounting screws; designed for surface mount installation

  • Device Compatibility: For use with IEC Pin & Sleeve/Twist-Lock(R) devices (16–32 amp display size)
