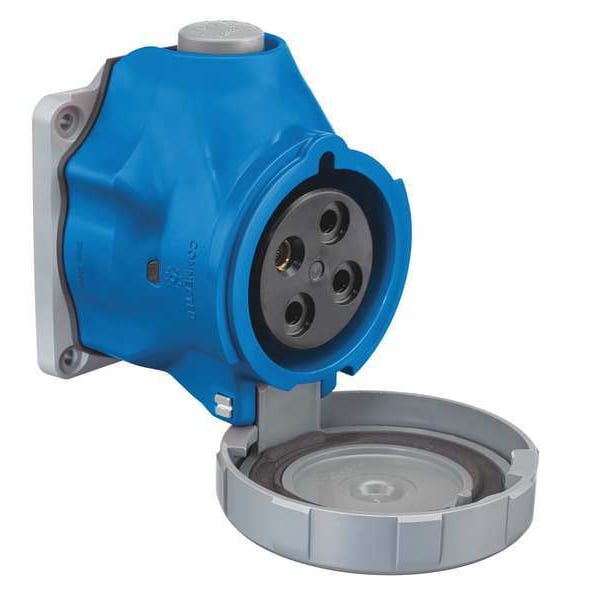

Pin & Sleeve Receptacle, 30 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 4X

  • Mfr # HBLS430R9W
  • Zoro # G2481319
product price:
$
560.25
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
4X
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBLS430R9W
Zoro #
G2481319
UPC #
783585550497
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
12 AWG
Face Diameter
3.13 in
Fits Chest Size
Approved as a Disconnecting Means for Motor Circuits and Branch Circuits, Mates with Existing Installed Base of IEC 60309-2 Pin and Sleeve Devices, Unswitched Ground

Details

Item
Pin & Sleeve Receptacle
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR285C, File E146032, UL Listed
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant
Body Material - Pin and Sleeve
Valox 357
Power Indication
No
HP
10 hp
Switch Rated
Yes
Body Material
Valox 357
Grounding Style
IEC
Features
Approved as a Disconnecting Means for Motor Circuits and Branch Circuits, Mates with Existing Installed Base of IEC 60309-2 Pin and Sleeve Devices, Unswitched Ground
Connection Orientation
Straight
Horsepower Rating
10 hp
Maximum Operating Temperature
75 Degrees C
Flange Type
Flanged
Market
Industrial
Shrouded
Yes
Reverse Service
No
Power Indicating Light
Yes
Minimum Operating Temperature
-40 Degrees C
Housing Material
PBT
Housing Material Grade
Valox 357
Number of Gangs
1
Series
Advantage Switch-Rated
Style
IP69k NEMA 4X
Grounding
Grounded
UL 94 Flammability Rating
V-0

Description

The HUBBELL AdvantageTM Series Pin and Sleeve Receptacle is a 30A, 250VAC electrical connector intended for industrial applications. This device is compatible with IEC 60309-2 pin and sleeve systems and rated as a switch-rated disconnecting means for motor circuits and branch circuits. Its compact design features a Valox 357 (polybutylene terephthalate) housing that withstands impact, corrosion, moisture, and extreme temperatures.


Key Features of the HUBBELL AdvantageTM Series Pin & Sleeve Receptacle:

  • Current/Voltage Rating: Rated for 30 amps at 250V AC; suitable for three-phase power distribution.

  • Switch-Rated: Approved as a disconnecting means for both motor circuits and branch circuits.

  • Construction: Valox 357 body with stainless steel hardware; shrouded spring-loaded cap enhances durability.

  • NEMA/IP Ratings: NEMA Type 4X enclosure rating; IP67/IP69k style provide protection against water ingress, dust, and harsh conditions.

  • Temperature Range: Operates from -40°C to +75°C; supports wire sizes from 12 AWG to 8 AWG via screw terminals.

  • Power Indication: Equipped with power-indicating lights for visual status confirmation during operation.

  • Circuit Compatibility: Mates with existing installed base of IEC 60309-2 devices; grounded per IEC standards with unswitched ground configuration.

  • Certifications: UL Listed (File E146032), CSA Certified (LR285C); UL94 V-0 flammability rating ensures material performance under fire exposure conditions.
