Shop HUBBELL WIRING DEVICE-KELLEMS

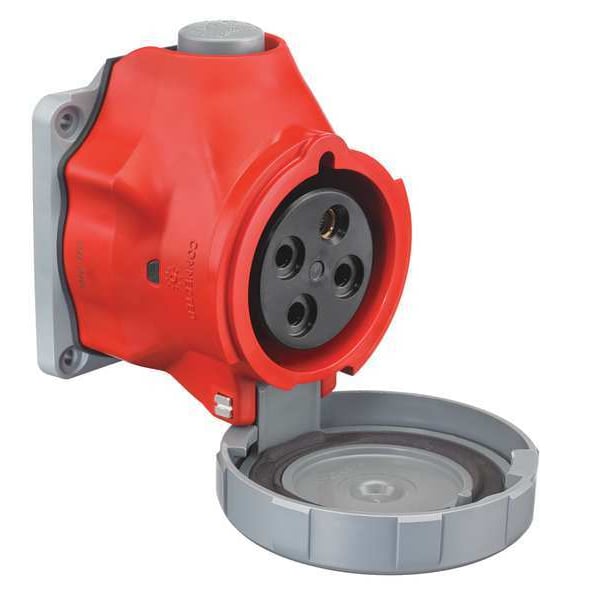

Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Red, NEMA 4X

  • Mfr # HBLS430R7W

  • Zoro # G2481477

product price:  $565.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
4X
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBLS430R7W
Zoro #
G2481477
UPC #
783585550480
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
12 AWG
Face Diameter
3.13 in

Details

Item
Pin & Sleeve Receptacle
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Red
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR285C, File E146032, UL Listed
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant
Power Indication
No
Body Material
Valox 357
Switch Rated
Yes
Body Material - Pin and Sleeve
Valox 357
Grounding Style
IEC
HP
20 hp
Features
Approved as a Disconnecting Means for Motor Circuits and Branch Circuits, Mates with Existing Installed Base of IEC 60309-2 Pin and Sleeve Devices, Unswitched Ground
Number of Gangs
1
Market
Industrial
Horsepower Rating
20 hp
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
75 Degrees C
Housing Material Grade
Valox 357
Housing Material
PBT
Connection Orientation
Straight
Reverse Service
No
Power Indicating Light
Yes
Shrouded
Yes
Flange Type
Flanged
Style
IP69k NEMA 4X
Series
Advantage Switch-Rated
UL 94 Flammability Rating
V-0
Grounding
Grounded

Description

The HUBBELL AdvantageTM Series Pin and Sleeve Receptacle is a 30A, 480VAC device intended for use in industrial electrical connections. It features a straight connection orientation and is compatible with IEC 60309-2 pin and sleeve devices. The receptacle functions as a disconnecting means for motor circuits and branch circuits, per applicable standards, suitable for use in demanding environments.


Key Features of the HUBBELL AdvantageTM Series Pin & Sleeve Receptacle:

  • Current/Voltage Rating: Rated for 30 A at 480V AC, three-phase operation

  • Housing Material: Valox 357 (polybutylene terephthalate)

  • NEMA/IP Ratings: NEMA Type 4X enclosure; IP67/IP69k rated for protection against dust, water, and high-pressure washdowns

  • Operating Temperature Range: -40°C to 75°C

  • Wire Size Compatibility: Accepts wire sizes from 12 AWG to 8 AWG via screw terminals

  • Horsepower Rating: Rated up to 20 hp

  • Power Indicating Light: Includes power-indicating LEDs

  • Grounding Style: Unswitched ground per IEC standards

  • Flange Type & Cap: Flanged body with spring-loaded cap for secure closure

  • Circuit Disconnect Functionality: Functions as a disconnecting means for motor circuits and branch circuits, per applicable standards

  • Standards Compliance: UL Listed (File E146032), CSA Certified LR285C; UL94 V-0 flammability rating
