  6. Pin & Sleeve Receptacle, 30 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA Not Rated

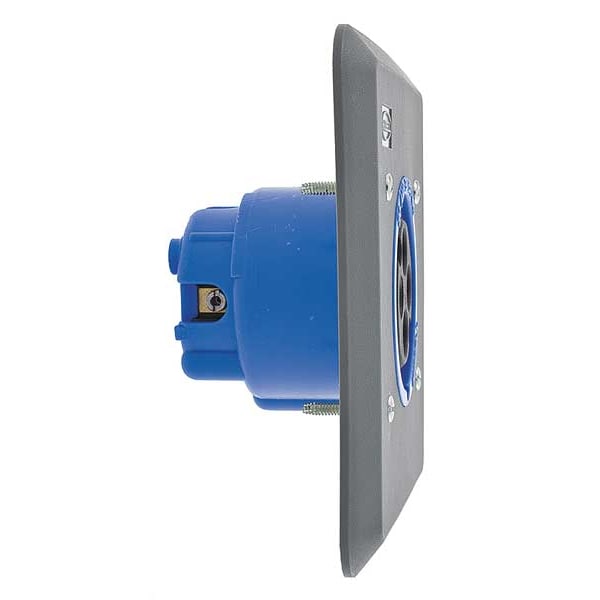

Hubbell Wiring Device-Kellems Pin & Sleeve Receptacle, 30 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA Not Rated L430R9 - main

Pin & Sleeve Receptacle, 30 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA Not Rated

  • Mfr # L430R9

  • Zoro # G2353023

product price:  $191.70
/ea
Free Shipping & Returns

Key Features

Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
L430R9
Zoro #
G2353023
UPC #
783585888101
Country of Origin
United States

Dimensions

Minimum Wire Size
12 AWG
Maximum Wire Size
8 AWG
Face Diameter
4.71 in
Wire Size
12 to 10 AWG
Display Size
Standard Sized Product

Details

Item
Pin & Sleeve Receptacle
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP22
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94
Resistance Properties
Corrosion Resistant, Impact Resistant, Watertight
Features
Color Coded, Split Sleeves with Self-Adjusting Stainless Steel Springs
Body Material
Zytel 101 Nylon
Body Material - Pin and Sleeve
Zytel 101 Nylon
Switch Rated
No
Grounding Style
IEC
Receptacle Type
IEC
Material
Thermoplastic
Maximum Operating Temperature
75 Degrees C
Power Indicating Light
No
Connection Orientation
Straight
Market
Industrial
Housing Material
Thermoplastic
Shrouded
Yes
Number of Gangs
1
Reverse Service
No
Housing Material Grade
Zytel 101
Minimum Operating Temperature
-40 Degrees C
Flange Type
Flanged
Operating Temp. Range
-40° C to 75° C
Application
High Ampacity Watertight Connections
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Watertight
Series
Low Profile
Wattage
7500
Style
Standard Service
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interruption at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 250V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP22 Suitability Environmental - Operating Temperatures - Max. Continuous +75°C Min. -40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American convention
Connection Type
Screw Terminals

Description

The HUBBELL IEC Pin and Sleeve Receptacle, 30A, 250V is an IP22 rated enclosure intended for use in industrial applications requiring up to 30A, 250V AC. This low profile device with compact dimensions features a design suitable for installations where space is limited. It is compatible with standard IEC 60309 pin and sleeve devices and supports three-phase operation at 30A, 250V AC.


Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:

  • Current/Voltage Rating: Rated for 30 A, 250V AC, three-phase applications

  • Material: Zytel 101 nylon thermoplastic housing

  • Connection Type: Screw terminals with pressure terminal screws accommodate wire sizes from 12 to 8 AWG

  • Ingress Protection: IP22 rated enclosure provides protection against limited water ingress

  • Operating Temperature Range: -40°C to +75°C

  • Coding & Identification: Blue color coded housing; shrouded design enhances connection integrity

  • Standards Compliance: Meets CSA C22.2 No.0.17 & No.182.1, UL1682, UL94 HB flammability rating, IEC standards

  • Additional Features: Split sleeves with self-adjusting stainless steel springs; grounded per IEC convention; single gang flange mount style
