  11. Pin & Sleeve Receptacle, Three Phase, 4 Pole, Screw Terminals Wire Connection Type Red

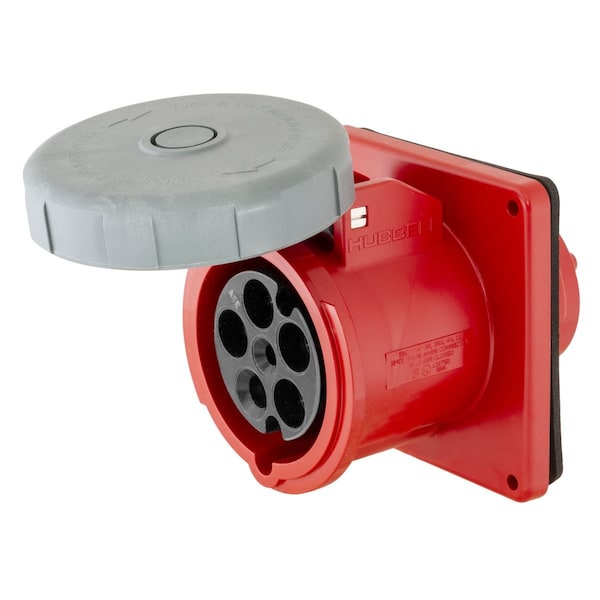

Hubbell Wiring Device-Kellems Pin & Sleeve Receptacle, Three Phase, 4 Pole, Screw Terminals Wire Connection Type Red HBL530R6W - main

Pin & Sleeve Receptacle, Three Phase, 4 Pole, Screw Terminals Wire Connection Type Red

  • Mfr # HBL530R6W

  • Zoro # G800701340

product price: $358.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
4
Number of Wires
5
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL530R6W
Zoro #
G800701340
UPC #
783585574608
Country of Origin
United States

Dimensions

Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product

Details

Item
Pin & Sleeve Receptacle
Phase
Three
Number of Poles
4
Number of Wires
5
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Red
Cap Type
No Cap or Cover
Standards
CSA Certified File LR280C, UL Classified/IEC 60309-1 IEC 60309-2, UL Listed/UL1682
Resistance Properties
Watertight
Material
Thermoplastic
Application
High Ampacity Watertight Connections
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability -V-0 Environmental - Ingress Protection - Type 3R, 3RX, 4X and IP68, IP69k Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Insulation
Insulated Body
Material - Mounting Hardware
Screw Mounting
Number Of Conductors
5-Wire Grounding
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed to UL1682
Series
HBL Heavy Duty
Dielectric Strength
Withstands 3000V Minimum in
Environmental Conditions
Watertight
Style
Standard Service
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact

Description

Hubbell Wiring Device Kellems, IEC Pin and Sleeve, Receptacle, 30/32A220-415V, 3-Pole 4-Wire Grounding, 4X/IP69K
