Shop HUBBELL WIRING DEVICE-KELLEMS

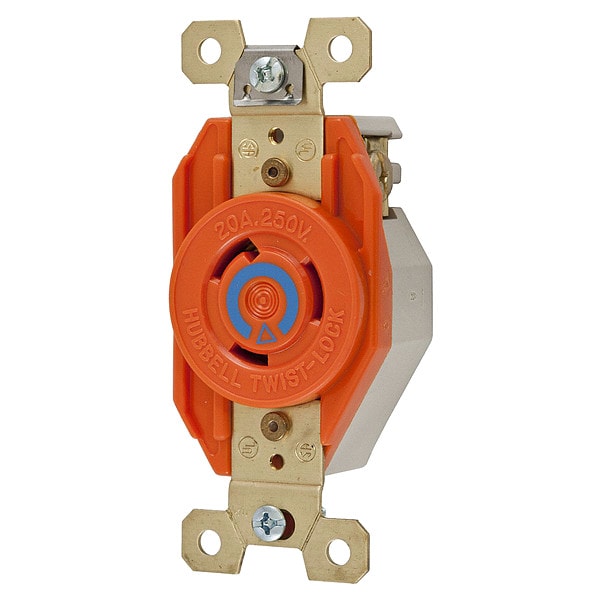

Locking Receptacle, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # IG2320

  • Zoro # G1828251

product price:  $39.99
/ea

Key Features

NEMA Receptacle Configuration
L6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IG2320
Zoro #
G1828251
UPC #
783585872223
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#12 AWG
Height
1.24 in
Width
1.70 in
Length
3.28 in
Dimensions
3.28 in x 1.70 in x 1.24 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Special Features
With Isolated Ground
Grade
Industrial
Mounting Type
Flush Mount
IP Rating
IP20
Wiring Style
Standard
Material
Nylon
Number of Gangs
1
Polarized
Yes
Market
Industrial
Horsepower Rating
2 hp
AFCI
No
For Location
Indoor
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
For Environment
Dry
Housing Material
Nylon
NEMA Enclosure Rating
12, 4X
Includes Mounting Hardware
Yes
Includes
Mounting Hardware
Shrouded
No
Spring Material
.040" Brass
Base Material
Nylon Polyester
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Terminal Designations
Terminals identified in accordance with UL 498
Lock Type
Twist-lock
Application
Heavy Duty Industrial
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #16 - #8 AWG solid or stranded copper wire Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
Dielectric Strength
Withstands 2,000V minimum
Amperage Rating
20 A
Material - Mounting Hardware
Screw Mounting
Amps
20

Description

In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than ever—Hubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
• Insulation barrier construction isolates ground contact from mounting strap
• Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
• High-impact, abuse-resistant nylon face
• All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
