This item is Discontinued.

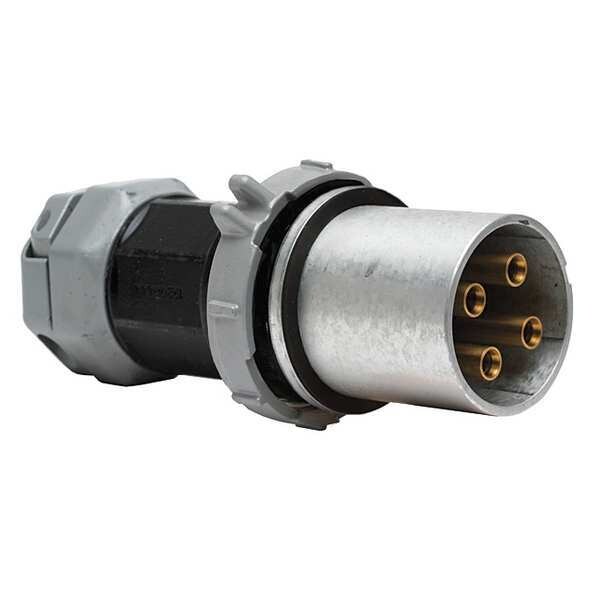

Hubbell Wiring Device-Kellems Plug HBL5200PS1W

Plug (Discontinued)

  • Mfr # HBL5200PS1W
  • Zoro # G7272413
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5200PS1W
Zoro #
G7272413
UPC #
783585011547
Country of Origin
United States

Dimensions

Outside Diameter
6.7 in
Overall Length
11.13 in
Minimum Wire Size
1 AWG
For Maximum Cable Diameter
2.5 in
Maximum Wire Size
250 kcmil
For Minimum Cable Diameter
1 in
Wire Size
#1 AWG to #250MCM
Display Size
Standard Sized

Details

Item
Plug
Fits Brand
Hubbell Wiring Device-Kellems
Grounding Style
Style 1
Maximum Operating Temperature
75 Degrees C
NEMA Enclosure Rating
4X
Shrouded
Yes
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Material
Non-Metallic
IP Rating
Not Rated
Compatible with Series
Insulgrip
Number of Wires
5
Features
All-Brass Sleeve Contacts Provide Reliable Electrical Contact, Catalog Number and Rating Visible While in Use, Locking Ring Provides UL Type 4X Watertight, Dust-Tight Seal
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Number of Poles
4
Housing Color
Black/Gray
Voltage Rating
250V DC, 600V AC
UL 94 Flammability Rating
V-0
Reverse Service
No
Standards
CSA Certified C22.2 No. 159, CSA Certified Type 4X, UL 1010, UL 1682, UL 50, UL Listed
Minimum Operating Temperature
-40 Degrees F
Switch Rated
No
Cap Type
No Cap or Cover
Current Rating
200 A
Power Indicating Light
No
Grounding
Grounded
Type
Watertight Plug
Material - Mounting Hardware
Cord Mounted
Series
UL 1686 Class 1 Insulgrip®
Current / Amperage Rating
200 A
Connectivity
Pressure Terminal Screws
Style
Standard Service,Style 1 Grounding
Environmental Conditions
Watertight
Material
Composite
Voltage Rating Description
600V AC/250V DC
Nema Rating
Non-NEMA
Item Type
Male Plug
Cord Type
All Portable
Amperage Rating
200 A
Application
Metallic with Nylon Shroud
Industry Standard(s)
CSA Certified to CSA Spec. C22.2 No. 159 UL Listed and CSA Certified Type 4X UL Standard 1682,UL 50, and UL 1010
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
OEM Brand Name
Hubbell Wiring Device-Kellems
Phase
Single

Description

The HUBBELL Plug is a male, intended for electrical applications requiring moisture resistance and impact durability. It features a composite, non-metallic housing with a metallic shroud and is compatible with Hubbell's Insulgrip series. The plug supports up to 200 A at 600V AC/250V DC, accommodates wire sizes from #1 AWG to 250 kcmil, and includes pressure terminal screws compatible with grounding conductors as specified by the manufacturer.


Key Features of the HUBBELL Plug:

  • Amperage & Voltage Rating: Rated for 200 A; suitable for circuits rated up to 600V AC or 250V DC

  • Environmental Protection: Design meets NEMA Type 4X enclosure rating requirements. Constructed according to standards addressing water ingress and mechanical impacts.

  • Construction: Composite material with non-metallic housing and metallic shrouding; cord mounted installation

  • Cable Compatibility: Accepts cable diameters from 1 in. to 2.5 in.; outside diameter of plug is 6.7 in., overall length is 11.13 in.

  • Connection Method: Screw terminals supporting wire sizes #1 AWG–#250MCM

  • Pole/Wire Configuration: Single phase, Style 1 grounding; includes four poles and five wires

  • Certifications & Standards: CSA Certified C22.2 No.159, UL Listed (UL1010, UL1682), Type 4X enclosure rating

  • Performance Attributes: All-brass sleeve contacts; locking ring designed in accordance with enclosure sealing specifications; catalog number/rating is marked on the product

  • Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous operation
