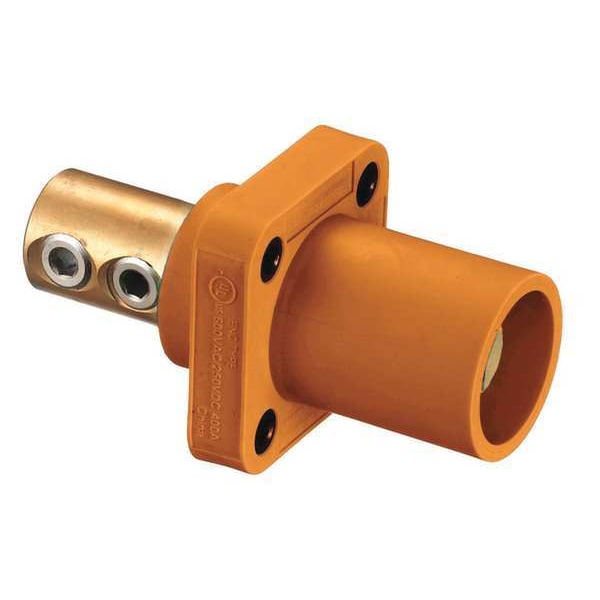

Hubbell Wiring Device-Kellems Receptacle, 4 to 4/0, Male, Double Set HBLMRO - main

Receptacle, 4 to 4/0, Male, Double Set

  • Mfr # HBLMRO

  • Zoro # G6210337

product price: $52.59
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLMRO
Zoro #
G6210337
UPC #
783585112978
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Overall Width
2.2 in
Maximum Wire Size
4/0 AWG
Minimum Wire Size
4 AWG
Overall Length
4.1 in
Wire Size
#4 AWG to #4/0 AWG
Display Size
Standard Sized Product

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Conductor Material
Brass
Amps AC/DC
300/400AC/DC
Color
Orange
Mounting
Screw Mount
Material
Thermoplastic Elastomer
Single Pole Device Style
Taper Nose
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Fits
UL1691
Cable Range
4 to 4/0
Amps AC
400 A
Includes Mounting Hardware
Yes
Phase
Single
Mounting Style
Through Hole Mounting
Flange Shape
Square
Connection Orientation
Straight
For Location
Indoor
Contact Material
Brass
Housing Material
Thermoplastic Elastomer
End Type
Taper Nose
Terminal Connection Type
Double Set Screw
Housing Color
Orange
Gender
Male
NEMA Enclosure Rating
12, 3R, 4X
Compatible with Series
16
Connectivity
Screw Terminals
Style
Double Set Screw Male
Number Of Poles
1-Pole
Current / Amperage Rating
400 A
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Wattage
240000
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Item Type
Flanged Single
Application
High Ampacity Connections
Amperage Rating
400 A
Voltage Rating Description
600V AC/DC

Description

The HUBBELL Receptacle, 4 to 4/0, Male, Double Set is a single pole device rated for use in high ampacity electrical connections. This male receptacle features a flanged design with a taper nose and double set screw terminal connection, compatible with Series 16 devices. It accommodates cable sizes from #4 AWG to 4/0 AWG and is intended for indoor dry locations; consult installation guidelines if additional protection is required.


Key Features of the HUBBELL Receptacle, 4 to 4/0, Male, Double Set:

  • Amperage Rating: Rated at 400 A (AC) and compatible with AC/DC applications within specified amperage ranges (300/400A).

  • Voltage Rating: Supports up to 600V AC or 250V DC.

  • Cable Range: Accepts wire sizes from #4 AWG to #4/0 AWG.

  • Terminal Connection Type: Double set screw terminals allow connection without special tools.

  • Conductor & Contact Material: Brass conductor and contact material.

  • Housing Material: Thermoplastic elastomer housing, standard-sized form factor.

  • NEMA Enclosure Ratings: Suitable for NEMA Types 12, 3R, and 4X enclosures when properly installed.

  • Mounting Style: Screw mount through-hole installation; includes mounting hardware.

  • Industry Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed/cUL Listed standards including UL1691 compatibility.
