Shop HUBBELL WIRING DEVICE-KELLEMS

Triple Connctr, Male-Female-Female-Female

  • Mfr # HBLM3FY
  • Zoro # G0110921
product price:
$
218.70
/ea
Free Shipping & Returns

Key Features

Type
Tees and 3-Fers
Series
16
Male/Female
Male-Female-Female-Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBLM3FY
Zoro #
G0110921
UPC #
783585112824
Country of Origin
China
Item
3-Fer
Type
Tees and 3-Fers
Series
16
Male/Female
Male-Female-Female-Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Color
Yellow
Standards
cUL, UL
Material
Thermoplastic Elastomer
Conductor Material
Brass
Fits
UL1691
Amps AC/DC
300/400AC/DC
Single Pole Device Style
Taper Nose
Product Type
3-Fer
NEMA Enclosure Rating
12, 3R, 4X
Gender Configuration
Male-Female-Female-Female
Housing Color
Yellow
Contact Material
Brass
Compatible with Series
16
Housing Material
Thermoplastic Elastomer
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
Current / Amperage Rating
400 A
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of the device
Application
High Ampacity
Item Type
Tri-Taps
Style
3-Fer Male-Female-Female-Female
Wattage
360000
Amperage Rating
400 A
Industry Standard(s)
UL 498 And UL1691
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage Rating Description
600V AC/DC
Number Of Pins
1) In, 3) Out- Male-Female-Female-Female
Insulation
Insulated Body
Compatible Series
16
For Use With
16

Dimensions

Overall Width
1.48 in
Overall Height
5.88 in
Overall Length
5.78 in
Wire Rope Length
5.78 in
Length
5.78 in

Description

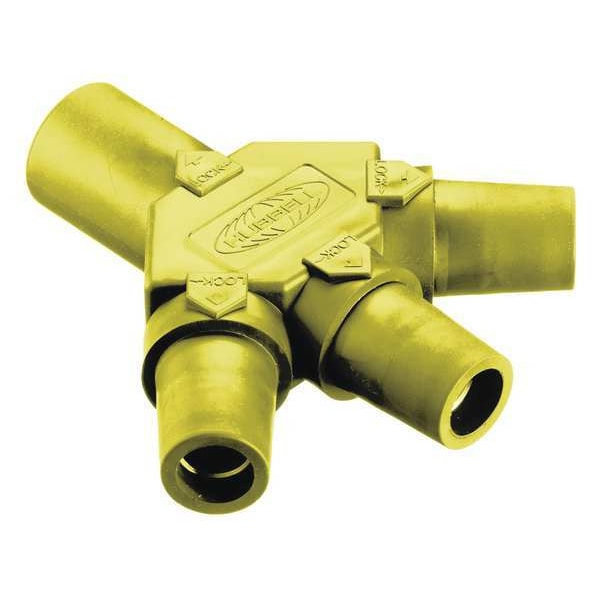

The HUBBELL Triple Connector (Male-Female-Female-Female) is a single pole device rated for high ampacity electrical power distribution. Classified as a tri-tap or 3-fer, this connector allows one input and three outputs in a male-female-female-female configuration. It is compatible with Series 16 devices and constructed with an insulated thermoplastic elastomer housing for use in demanding applications.


Key Features of the HUBBELL Triple Connector:

  • Amperage Rating: Rated for up to 400 A AC/DC

  • Voltage Rating: Suitable for 600V AC or 250V DC systems

  • Gender Configuration: Male-Female-Female-Female (tri-tap/3-fer)

  • Material: Brass conductor contacts; thermoplastic elastomer housing

  • NEMA Enclosure Ratings: Meets NEMA 12, 3R, and 4X standards

  • Operating Temperature Range: -40°C to +75°C continuous operation

  • Industry Standards: UL498, UL1691, cUL listed

  • Compatible Series: Compatible with Series 16 single pole devices
