  6. Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

This item is Discontinued.

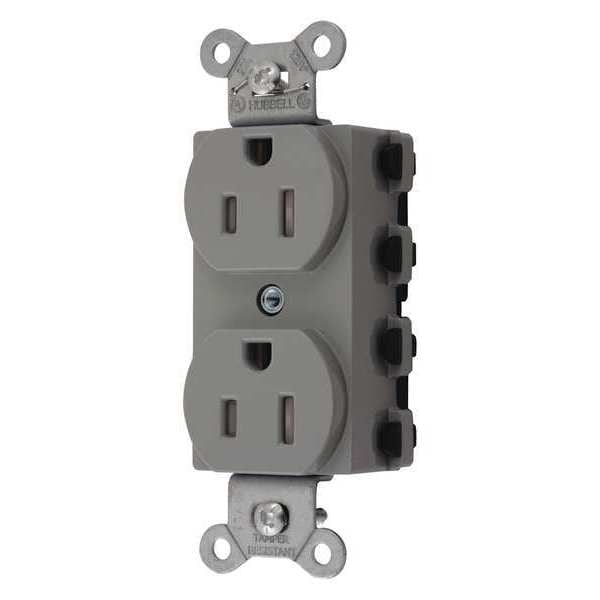

Hubbell Wiring Device-Kellems Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP5262GYTRA

Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded (Discontinued)

  • Mfr # SNAP5262GYTRA
  • Zoro # G4440357
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SNAP5262GYTRA
Zoro #
G4440357
UPC #
783585552651
Country of Origin
Mexico

Dimensions

Width
1.64 in
Height
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.6 in
Maximum Wire Size
12 AWG
Overall Depth
1.1 in
Face Plate Width
1.6 in
Length
3.28 in
Wire Size
#12 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.64 in x 1.1 in

Details

Item
Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Modular Wiring
Wiring Method
Back
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Material
Nylon
Mounting Type - Plugs and Receptacles
Flush
Voltage - Plugs and Receptacles
125V AC
Weather Resistant - Plugs and Receptacles
No
Item - Plugs and Receptacles
Receptacle
Application Environment
Commercial
Mounting Type
Flush
Outlet Type
Duplex
Description
Finder Groove
Amps - Plugs and Receptacles
15 A
Power Indicator
No
Corrosion Resistant
No
NEMA Configuration
5-15
Tamper Resistant
Yes
Outlet Type - Plugs and Receptacles
Standard Duplex
Number of Gangs
1
Weather Resistant
No
Voltage
125VAC
Amps - Plugs and Receptacles
15
Wiring Method - Plugs and Receptacles
Modular
Color - Plugs and Receptacles
Gray
Sub-Category
Duplex Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Color
Gray
NEMA Rating
1
Surge Suppression
No
HP
1/2 hp
Amps
15
AFCI
No
Maximum Operating Temperature
167 Degrees F
NEMA Enclosure Rating
1
Market
Commercial
Grade
Federal Specification
Includes
Wall Plate or Weatherproof Cover
UL 94 Flammability Rating
V-2
GFCI
No
Cover Type
No Cover
Shrouded
No
Connection Orientation
Straight
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Surge Protection
No
Contact Material
Brass
Horsepower Rating
1/2 hp
Housing Material
Nylon
For Location
Indoor
Voltage Rating Description
125V
Horsepower - Maximum
0.5
Connectivity
Connectorized
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Extra Heavy Duty
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Dielectric Strength
Withstands 2,000V minimum
Number Of Conductors
3-Wire Grounding
Current / Amperage Rating
15 A
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
Wattage
1875 W
Type
Tamper-Resistant
Application
Extra Heavy Duty Specification Grade
Amperage Rating
15 A
Item Type
Smooth Face
Style
Smooth Face

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
