  6. Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

This item is Discontinued.

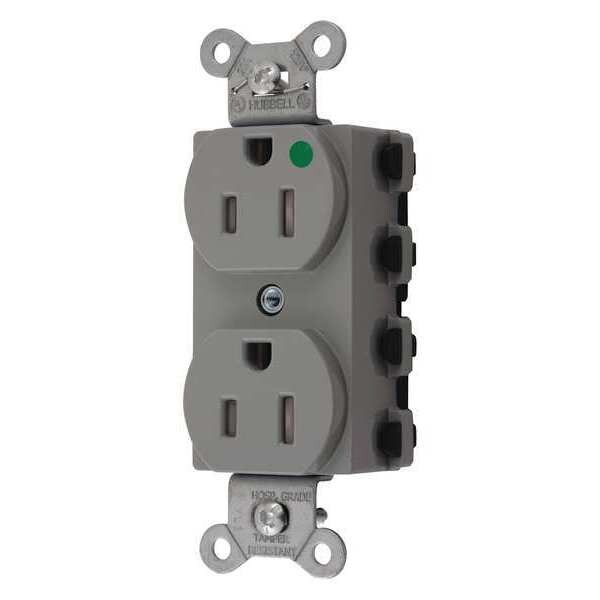

Hubbell Wiring Device-Kellems Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP8200GYTRA

Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded (Discontinued)

  • Mfr # SNAP8200GYTRA
  • Zoro # G4571808
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP8200GYTRA
Zoro #
G4571808
UPC #
783585553207
Country of Origin
Mexico

Dimensions

Height
1.1 in
Width
1.64 in
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
12 AWG
Face Plate Height
2.6 in
Face Plate Width
1.6 in
Length
3.28 in
Dimensions
3.28 in x 1.64 in x 1.1 in
Wire Size
#12 AWG
Display Size
Standard Sized Product

Details

Item
Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Modular Wiring
Wiring Method
Back
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Corrosion Resistant
No
Voltage
125VAC
Item - Plugs and Receptacles
Receptacle
Amps - Plugs and Receptacles
15 A
Surge Suppression
No
Description
Finder Groove
HP
1/2 hp
Sub-Category
Duplex Receptacles
Mounting Type - Plugs and Receptacles
Flush
Number of Gangs
1
Power Indicator
No
Application Environment
Commercial
Mounting Type
Flush
Amps - Plugs and Receptacles
15
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Material
Nylon
NEMA Configuration
5-15
Color - Plugs and Receptacles
Gray
Tamper Resistant
Yes
Outlet Type
Duplex
Weather Resistant
No
Color
Gray
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Rating
1
Wiring Method - Plugs and Receptacles
Modular
Amps
15
Voltage - Plugs and Receptacles
125V AC
NEMA Enclosure Rating
1
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
Surge Protection
No
Polarized
Yes
AFCI
No
Grade
Hospital Grade Fed. Spec.
Shrouded
No
Contact Material
Brass
Market
Commercial
Horsepower Rating
1/2 hp
For Location
Indoor
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Includes
Wall Plate or Weatherproof Cover
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Wattage
1875 W
Item Type
Traditional Duplex
Type
Tamper-Resistant
Voltage Rating Description
125 V
Application
Hospital Grade
Amperage Rating
15 A
Dielectric Strength
Withstands 2,000V minimum
Series
Hospital Grade
Style
Smooth Face
Current / Amperage Rating
15 A
Horsepower - Maximum
0.5
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
Connectivity
Connectorized
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number Of Conductors
3-Wire Grounding

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
