  9. Receptacle, Blue, Female, Stud, Taper Nose

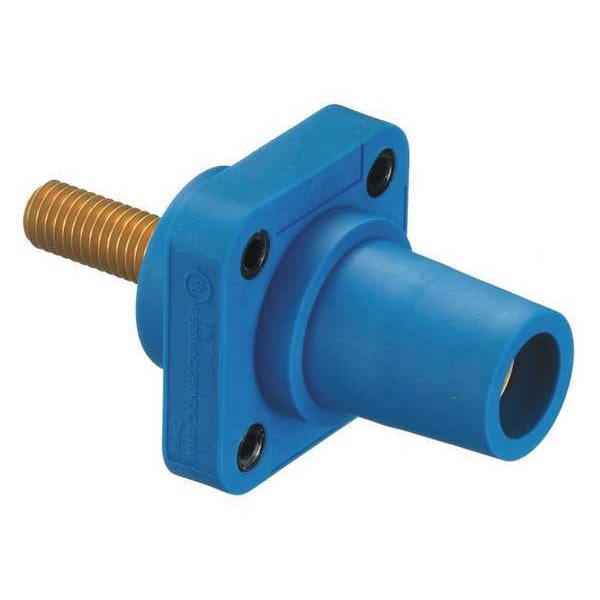

Hubbell Wiring Device-Kellems Receptacle, Blue, Female, Stud, Taper Nose HBLFRSCBL - main

Receptacle, Blue, Female, Stud, Taper Nose

  • Mfr # HBLFRSCBL

  • Zoro # G6226814

product price: $48.26
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLFRSCBL
Zoro #
G6226814
UPC #
783585093611
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Overall Width
2.2 in
Maximum Wire Size
4/0 AWG
Minimum Wire Size
4 AWG
Overall Length
3.67 in
Display Size
Standard Sized Product
Wire Size
#4 AWG to #4/0 AWG

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Conductor Material
Brass
Mounting
Threaded Stud
Single Pole Device Style
Taper Nose
Color
Blue
Amps AC/DC
300/400AC/DC
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Material
Thermoplastic Elastomer
Fits
UL1691
Amps AC
400 A
Gender
Female
For Location
Indoor
Terminal Connection Type
Threaded Stud
Phase
Single
End Type
Taper Nose
NEMA Enclosure Rating
12, 3R, 4X
Receptacle Gender
For Male Plugs
Mounting Style
Threaded Mounting
Contact Material
Brass
Connection Orientation
Straight
Compatible with Series
16
Housing Color
Blue
Flange Shape
Square
Housing Material
Thermoplastic Elastomer
Material - Mounting Hardware
Threaded Thru-Hole
Number Of Poles
1-Pole
Number Of Wires
1-Wire
Style
Stud Type, Threaded Hole Mounting, Female
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Current / Amperage Rating
400 A
Wattage
240000
Item Type
Panel Mount Receptacle
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Connectivity
Stud Type
Application
High Ampacity Connections
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Amperage Rating
400 A
Voltage Rating Description
600V AC/DC

Description

The HUBBELL Series 16 Blue Female Stud Taper Nose Receptacle is a single pole, panel mount device rated for use in high current applications. It features a straight connection orientation and is compatible with #4 to 4/0 AWG wire sizes. The receptacle utilizes a threaded stud terminal connection and is suitable for indoor use in dry conditions.


Key Features of the HUBBELL Series 16 Blue Female Stud Taper Nose Receptacle:

  • Amperage Rating: Rated for up to 400 A (AC/DC), supporting high current applications.

  • Voltage Rating: Suitable for circuits up to 600V AC or 250V DC.

  • Connection Type: Threaded stud terminal accommodates secure mechanical connections.

  • Wire Size Compatibility: Compatible with conductor sizes from #4 AWG to 4/0 AWG.

  • Material Construction: Housing made from thermoplastic elastomer; contact material is brass.

  • NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements when properly installed.

  • Standards Compliance: Listed under: ANSI/NFPA 70 (National Electric Code), UL/cUL standards including UL1691 enclosure types.

  • Device Style: Single pole, female receptacle with taper nose design; panel mount style using threaded thru-hole hardware.
