Shop HUBBELL WIRING DEVICE-KELLEMS

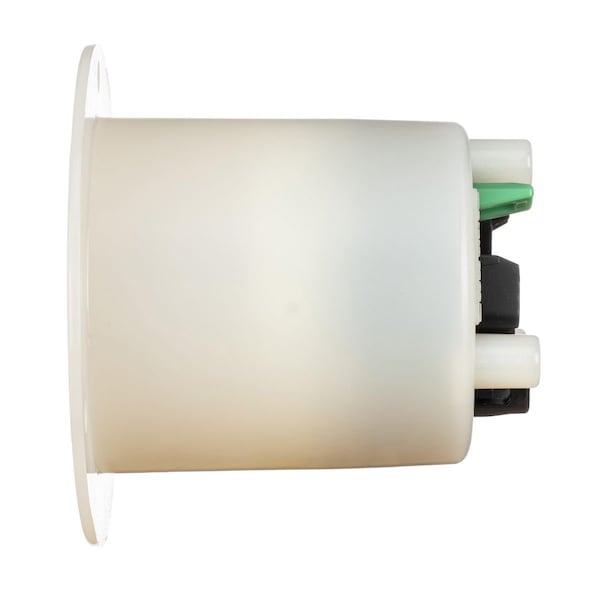

Locking Receptacle, 30 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Spring Clamp Terminals, White

  • Mfr # HBL2625ST

  • Zoro # G106171335

product price:  $51.98
/ea

Key Features

NEMA Receptacle Configuration
L6-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2625ST
Zoro #
G106171335
UPC #
783585719030
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Overall Depth
2.63 in
Flange Diameter
2.5 in
Face Plate Width
0.07 in
Maximum Wire Size
10 AWG
Face Diameter
2.04 in

Details

Item
Locking Plug
NEMA Receptacle Configuration
L6-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Grade
Federal Specification
IP Rating
IP20
Includes
14 AWG - 8 AWG Copper Wire
NEMA Plug Configuration
L6-30P
Number of Blades
3
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
Housing Material Finish
Natural
Market
Industrial
Horsepower Rating
2 hp
Shrouded
No
NEMA Configuration
L6-30
UL 94 Flammability Rating
HB
Blade Material
Copper Alloy

Description

• Faster termination time
• No need for torque wrench
• Strong steel spring eliminates strand relaxation
• Funnel shaped wire entry for ease of termination.
• Backwired termination for ease of installation
