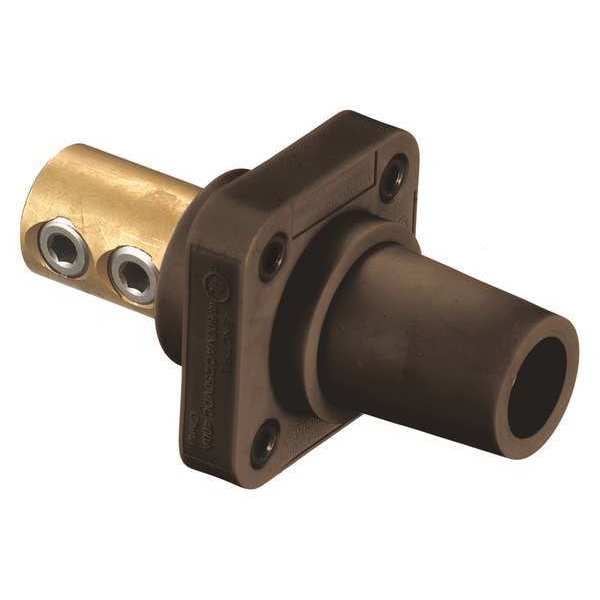

Hubbell Wiring Device-Kellems Receptacle, Brown, Female, Double Set Screw HBLFRBN - main

Receptacle, Brown, Female, Double Set Screw

  • Mfr # HBLFRBN

  • Zoro # G4844266

product price: $52.59
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLFRBN
Zoro #
G4844266
UPC #
-
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Overall Width
2.2 in
Overall Length
4.1 in
Stud Thread Size
(2) 7/32" Socket Head Set Screw Termination; 4x #10-32 (Mounting Hole)
Minimum Wire Size
4 AWG
Maximum Wire Size
4/0 AWG
Display Size
Standard Sized Product
Wire Size
#4 AWG to #4/0 AWG

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
4x
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Material
Thermoplastic Elastomer
Cable Range
4 to 4/0
Color
Brown
Conductor Material
Brass
Mounting
Panel
Single Pole Device Style
Taper Nose
Fits
16 Series Male
Amps AC/DC
400AC/DC
Amps AC
400 A
Compatible with Series
16
End Type
Taper Nose
Housing Color
Brown
Mounting Style
Through Hole Mounting
Housing Material
Thermoplastic Elastomer
Gender
Female
Flange Shape
Square
Contact Material
Brass
NEMA Enclosure Rating
12, 3R, 4X
For Location
Indoor
Terminal Connection Type
Double Set Screw
Connection Orientation
Straight
Phase
Single
UL 94 Flammability Rating
HB
Style
Female Double Set Screw
Connectivity
Screw Terminals
Application
High Ampacity Connections
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Current / Amperage Rating
400 A
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Item Type
Panel Mount Receptacle
Number Of Poles
1-Pole
Wattage
240000
Number Of Wires
1-Wire
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Voltage Rating Description
600V AC/DC
Amperage Rating
400 A
Material - Mounting Hardware
Threaded Thru-Hole

Description

The HUBBELL Receptacle, Brown, Female, Double Set Screw is a single pole panel mount receptacle rated for use in applications requiring up to 400 A at 600V AC or 250V DC. This female device features a double set screw terminal connection and is compatible with Series 16 connectors. It accommodates wire sizes from #4 AWG to 4/0 AWG and is intended for installation in indoor dry locations; consult applicable codes and requirements if additional protection is needed.


Key Features of the HUBBELL Receptacle, Brown, Female, Double Set Screw:

  • Amperage Rating: Rated for up to 400 A at 600V AC or 250V DC

  • Cable Range: Accepts #4 AWG to 4/0 AWG conductors

  • Terminal Connection Type: Double set screw termination

  • Material: Housing made from thermoplastic elastomer; contact material is brass

  • NEMA Enclosure Ratings: Rated for NEMA Types 3R, 4X, and 12 environments

  • Mounting Style: Panel mount with through hole mounting hardware (threaded thru-hole)

  • Connection Orientation: Straight taper nose design; fits Series 16 male connectors

  • Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements
