  9. Receptacle, Double Set Screw, Red

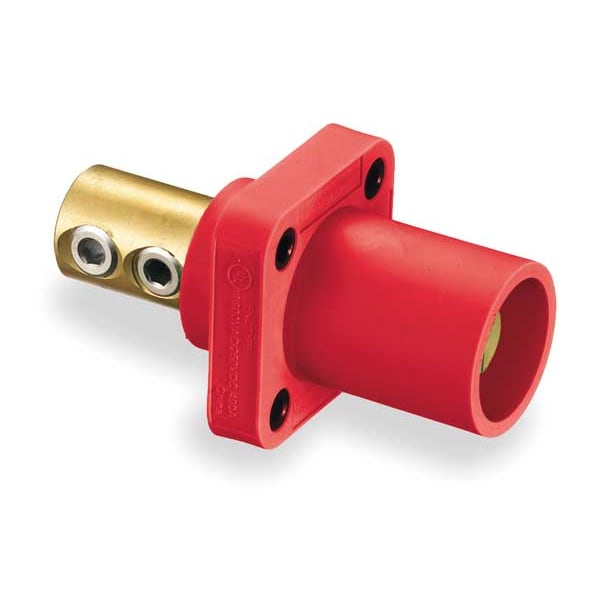

Hubbell Wiring Device-Kellems Receptacle, Double Set Screw, Red HBLMRR - main

Receptacle, Double Set Screw, Red

  • Mfr # HBLMRR

  • Zoro # G2106623

product price: $55.15
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLMRR
Zoro #
G2106623
UPC #
783585112985
Country of Origin
China

Dimensions

Overall Length
4.1 in
Minimum Wire Size
4 AWG
Maximum Wire Size
4/0 AWG
Overall Width
2.2 in
Wire Size
#4 AWG to #4/0 AWG
Display Size
Standard Sized Product

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12K, 3R, 4X
Material
Thermoplastic Elastomer
Color
Red
Mounting
Panel
Cable Range
4 to 4/0
Single Pole Device Style
Taper Nose
Conductor Material
Brass
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Amps AC/DC
400AC/DC
Amps AC
400 A
Housing Color
Red
Receptacle Gender
For Female Connectors
Housing Material
Thermoplastic Elastomer
NEMA Enclosure Rating
12, 3R, 4X
Flange Shape
Square
Connection Orientation
Straight
Mounting Style
Through Hole Mounting
Contact Material
Brass
Includes Mounting Hardware
Yes
End Type
Taper Nose
Terminal Connection Type
Double Set Screw
Gender
Male
Compatible with Series
16
UL 94 Flammability Rating
HB
Phase
Single
For Location
Indoor
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Wattage
240000
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Amperage Rating
400 A
Application
High Ampacity Connections
Item Type
Flanged Single
OEM Brand Name
Hubbell Wiring Device-Kellems
Number Of Poles
1-Pole
Current / Amperage Rating
400 A
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Connectivity
Screw Terminals
Style
Double Set Screw Male
Voltage Rating Description
600V AC/DC

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Industrial Grade
• Male
• Receptacle
